Sourcing fluid control equipment for highly corrosive or high-purity environments presents a high-stakes reality. Equipment failure in these demanding settings goes far beyond simple operational inconvenience. It quickly escalates into severe safety hazards and serious compliance violations. Many vendors heavily market their products and claim superior polymer performance. Unverifiable marketing claims, however, introduce severe supply chain risks for your facility. Comprehensive documentation serves as your primary mechanism for mitigating these critical risks. It empowers you to verify material authenticity before installation. Proper paperwork establishes strict vendor accountability well before you issue any purchase order. Throughout this guide, you will learn exactly which test reports to demand from your vendors. We will explore material traceability, mandatory performance testing, and mechanism-specific data requirements. These insights will help you confidently select reliable industrial partners.
Procuring industrial valves requires more than evaluating physical dimensions and pressure ratings. You must secure verifiable data proving the equipment meets all safety requirements. Demanding rigorous chemical valve documentation builds a strong foundation for safe, predictable plant operations.
Installing substandard or counterfeit valves carries massive financial and safety implications. Poorly lined valves frequently suffer from premature permeation or sudden mechanical failure. These failures lead directly to catastrophic leaks. Toxic gases or highly acidic fluids escaping into your facility endanger personnel instantly. Furthermore, fugitive emissions trigger severe environmental penalties. Regulatory bodies quickly penalize facilities failing to contain hazardous compounds. Equipment failure also forces unplanned plant shutdowns. An unexpected shutdown stops production entirely. A single day of lost production often costs hundreds of thousands of dollars.
Proper documentation acts as a vital legal shield for your facility. It effectively shifts operational liability back to the manufacturer. If a component fails, certified test reports prove you performed proper due diligence during procurement. Internal QA/QC teams rely heavily on these records to approve new installations. External auditors from agencies like OSHA or the EPA also demand rigorous proof of equipment suitability. You cannot pass stringent compliance audits using marketing brochures. Inspectors require traceable, standardized testing data to confirm environmental and occupational safety compliance.
Common Mistake: Relying solely on a vendor's "Certificate of Compliance" (CoC). A simple CoC states the product meets standards but provides zero actual test data. Always demand specific, quantified test results instead.
Validating the exact composition of your equipment prevents rapid corrosion and structural degradation. You must track every critical component back to its original raw material batch.
You must specify the exact need for EN 10204 Type 3.1 certificates on all purchase orders. This specific standard ensures an authorized, independent inspection representative validates the test results. The MTR must detail the chemical composition and physical properties of the metal body. Common body materials include ASTM A216 WCB carbon steel or A351 CF8M stainless steel. Additionally, the report must clearly certify the polymer lining properties. These documents link the physical equipment to the paper via stamped heat numbers. You read the heat number on the casting and match it directly to the certificate.
Manufacturers sometimes cut costs by blending reprocessed scrap polymers into their lining materials. You must verify your fluoropolymer valve utilizes strictly virgin, high-density PTFE. Virgin PTFE offers maximum density and minimum porosity. Reprocessed materials contain microscopic voids and impurities. These defects make the lining highly susceptible to chemical permeation. Aggressive molecules migrate through reprocessed linings and attack the outer metal shell. Your material certificates must explicitly state the use of 100% virgin PTFE or PFA. Look for specific gravity and tensile strength measurements confirming high-density virgin properties.
Different industrial sectors mandate highly specialized compliance certificates. You must align your document requests with your specific process environment. The chart below outlines standard compliance certifications requested during the procurement process.
| Compliance Standard | Primary Industry | What the Document Verifies |
|---|---|---|
| EN 10204 Type 3.1 | General Chemical / Petrochemical | Traceability of physical and chemical material properties. |
| FDA CFR 21.177.1550 | Food and Beverage | Polymer formulation is safe for direct food/beverage contact. |
| USP Class VI | Pharmaceutical / Biotech | Extreme biocompatibility and lack of systemic toxicity. |
| ISO 15848-1 | Environmental / Refinery | Strict containment of volatile organic compounds (fugitive emissions). |
Material certificates prove the ingredients are correct. Performance test reports prove the final assembly actually works. You must demand documented proof of factory acceptance testing (FAT).
This specific certificate remains absolutely non-negotiable for lined valves. The testing process involves sweeping a high-voltage wand across the entire internal polymer surface. Documenting tests conducted between 15kV and 20kV ensures the lining contains no microscopic pinholes. Even a microscopic void allows corrosive media to breach the lining. If the high-voltage arc detects a pinhole, the wand sparks vividly. You must receive a signed certificate confirming a 100% successful spark test across all lined surfaces.
Manufacturers must physically pressurize the equipment before shipping. Require documented proof of hydrostatic shell testing and seat leakage testing. Industry standards like API 598 or EN 12266-1 dictate test durations and acceptable leakage rates. The shell test fills the assembled unit with pressurized water to ensure the metal body does not burst. The seat leakage test verifies the internal mechanism blocks flow completely when closed. Your documentation must list the test pressures applied, the duration of the hold, and the observed leakage rate. For hazardous chemicals, the acceptable seat leakage rate is always zero.
Many chemical processes operate under negative pressure conditions. Pulling a vacuum creates unique stress on lined equipment. The negative pressure attempts to suck the polymer lining inward. Establish a firm requirement for vacuum test certificates if your process demands it. These certificates ensure the PTFE lining will not collapse or detach from the corrosion-resistant valve body. Vacuum tests often involve subjecting the unit to negative pressure while cycling temperatures to simulate harsh operational stress.
Standard block mechanisms, like ball or plug configurations, operate manually or via actuators. Check mechanisms operate entirely based on flow dynamics. This fundamental difference requires unique documentation.

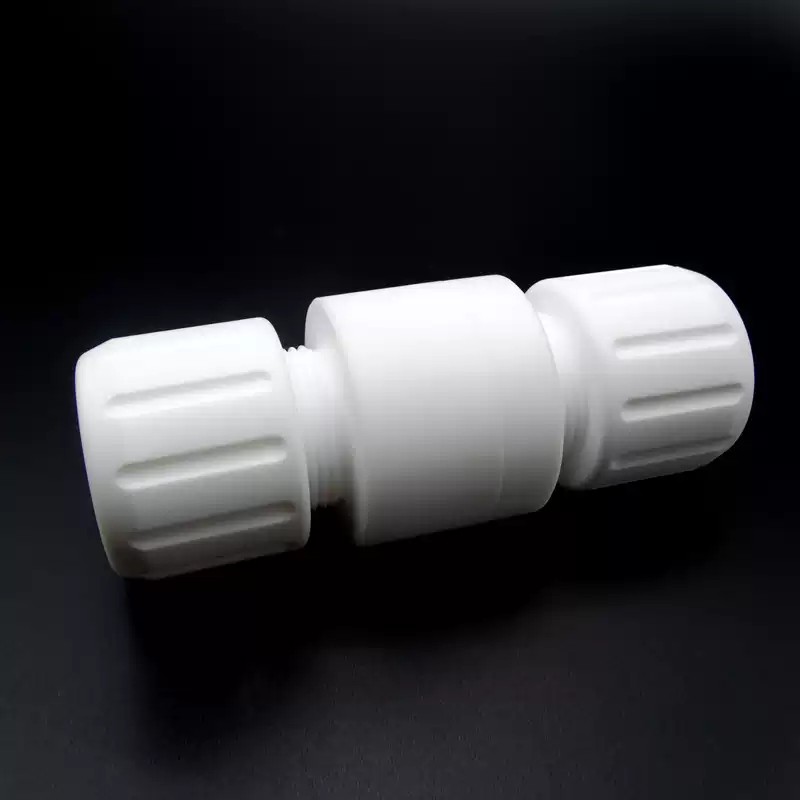

You must differentiate between standard isolation mechanisms and automated backflow prevention devices. When ordering a PTFE check valve, request highly specific functional test data. The manufacturer must verify the specific cracking pressure. Cracking pressure determines exactly how much forward flow is required to push the mechanism open. Additionally, require data validating sealing capability under low back-pressure conditions. Some mechanisms seal perfectly under high pressure but leak terribly when back-pressure is minimal. Functional reports validate these critical dynamic parameters.
Check mechanisms introduce internal obstacles into the flow path. Ask for manufacturer-published flow coefficient (Cv) data. This engineering data helps your team ensure the selected size matches the piping system's hydraulic requirements. Installing a unit with an inadequate Cv rating induces excessive pressure drops. High pressure drops waste pump energy and can cause fluid flashing or cavitation. Documented flow curves allow engineers to model system efficiency accurately before installation.
Backflow prevention devices rely on gravity and fluid dynamics. Consequently, orientation matters immensely. Require official installation manuals detailing permissible orientations.
Documented orientation guidelines prevent premature mechanical failure. Installing the wrong mechanism in the wrong direction negates all protective benefits immediately.
A vendor's approach to paperwork reveals their true manufacturing maturity. You can evaluate their reliability long before inspecting their physical products.
Most vendors quickly produce a basic ISO 9001 certificate. You must look far beyond this standard wall plaque. Request the PTFE valve supplier to provide a specific Quality Assurance Plan (QAP) for your order. Alternatively, ask for an Inspection and Test Plan (ITP). An ITP breaks down the entire manufacturing process step-by-step. It shows exactly when they cast the metal, when they line the body, and when they conduct spark tests. It also defines exactly who signs off on each step. A robust ITP proves the vendor integrates quality control into daily operations.
Reviewing submitted paperwork often exposes hidden supply chain risks. Watch out for these critical red flags during the vendor evaluation phase:
You need a reliable framework for prioritizing vendors during the bidding process. Use their documentation habits to rank them.
Purchasing industrial fluid control equipment is as much about buying the data as it is the physical product. Without verifiable paperwork, you are simply guessing at the safety and longevity of your process systems. High-quality documentation mitigates risk, ensures regulatory compliance, and validates material authenticity.
We strongly encourage procurement and engineering teams to embed these specific document requirements directly into their Request for Quotation (RFQ). Stating your documentation demands upfront helps disqualify under-resourced vendors early in the process. Finally, always schedule a final alignment meeting with shortlisted suppliers. Use this meeting to review a sample documentation package together. Verifying their paperwork capabilities before finalizing the contract ensures safe, reliable, and predictable facility operations.
A: An EN 10204 3.1 certificate is a formalized material test report. It guarantees material traceability back to the original foundry or polymer manufacturer. It requires an independent authorized representative to validate the testing. You need this certificate to confirm your equipment uses specified metal alloys and virgin PTFE.
A: Yes, but only if the report explicitly lists every individual serial number or heat number included in that batch. True traceability requires matching specific heat numbers on individual bodies to the paperwork. Never accept generic batch reports lacking serialized equipment links.
A: You should request dimensional inspection reports generated during the factory acceptance test (FAT). Quality inspection plans document the lining thickness using ultrasonic thickness gauges or mechanical calipers. Compare these recorded measurements against your requested engineering standards to ensure adequate corrosion allowance.
A: A spark test uses high voltage to detect microscopic pinholes in the internal PTFE lining. It ensures pure chemical isolation. A hydrostatic test uses pressurized water to verify the structural integrity of the outer metal shell. Hydrostatic tests confirm the assembly will not burst under high pressure.
