Key Features & Advantages
Easy Serviceability & Leak-Free Reconnection

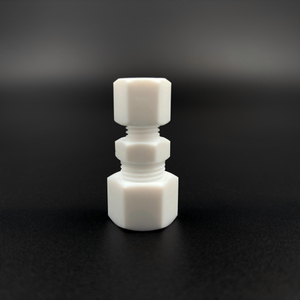

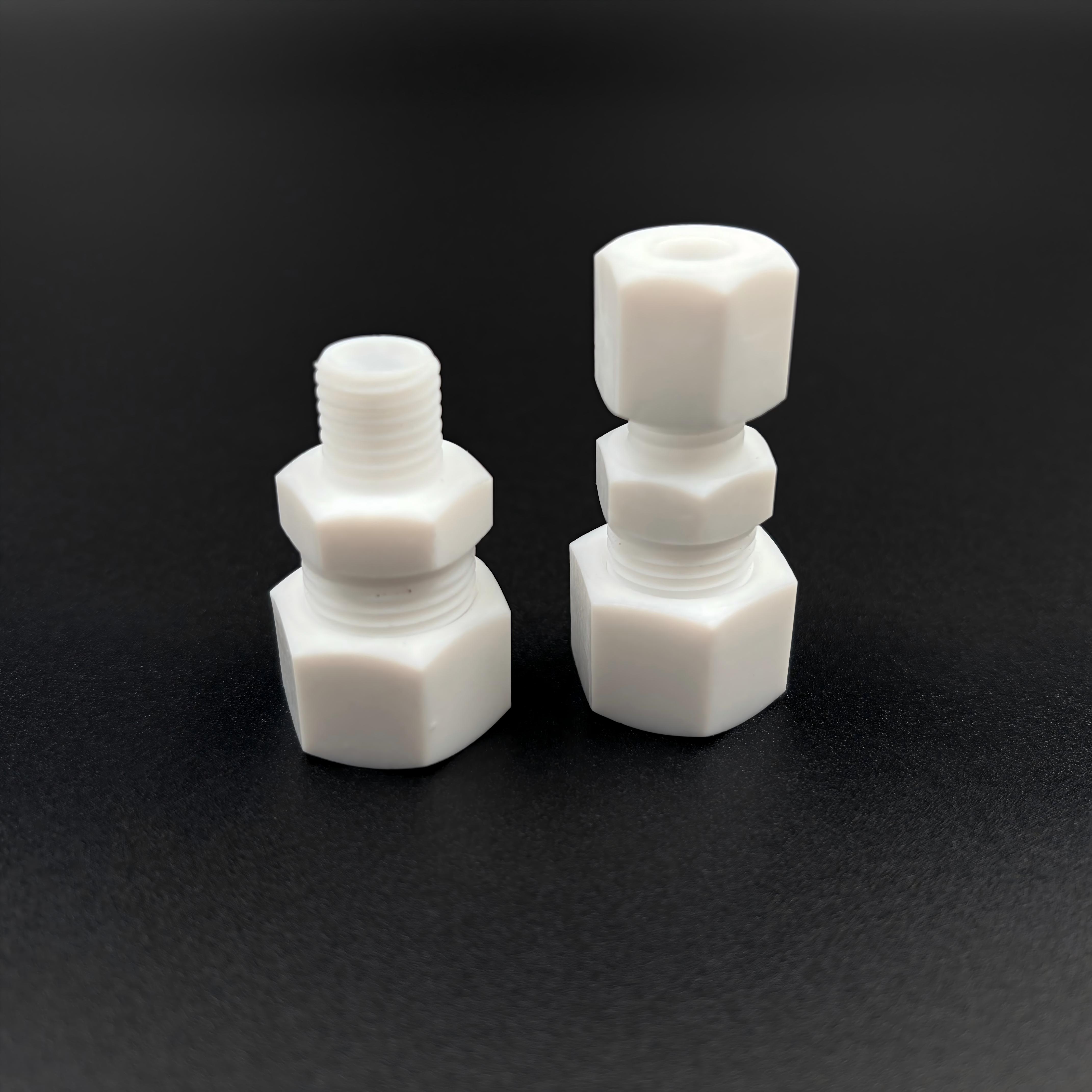

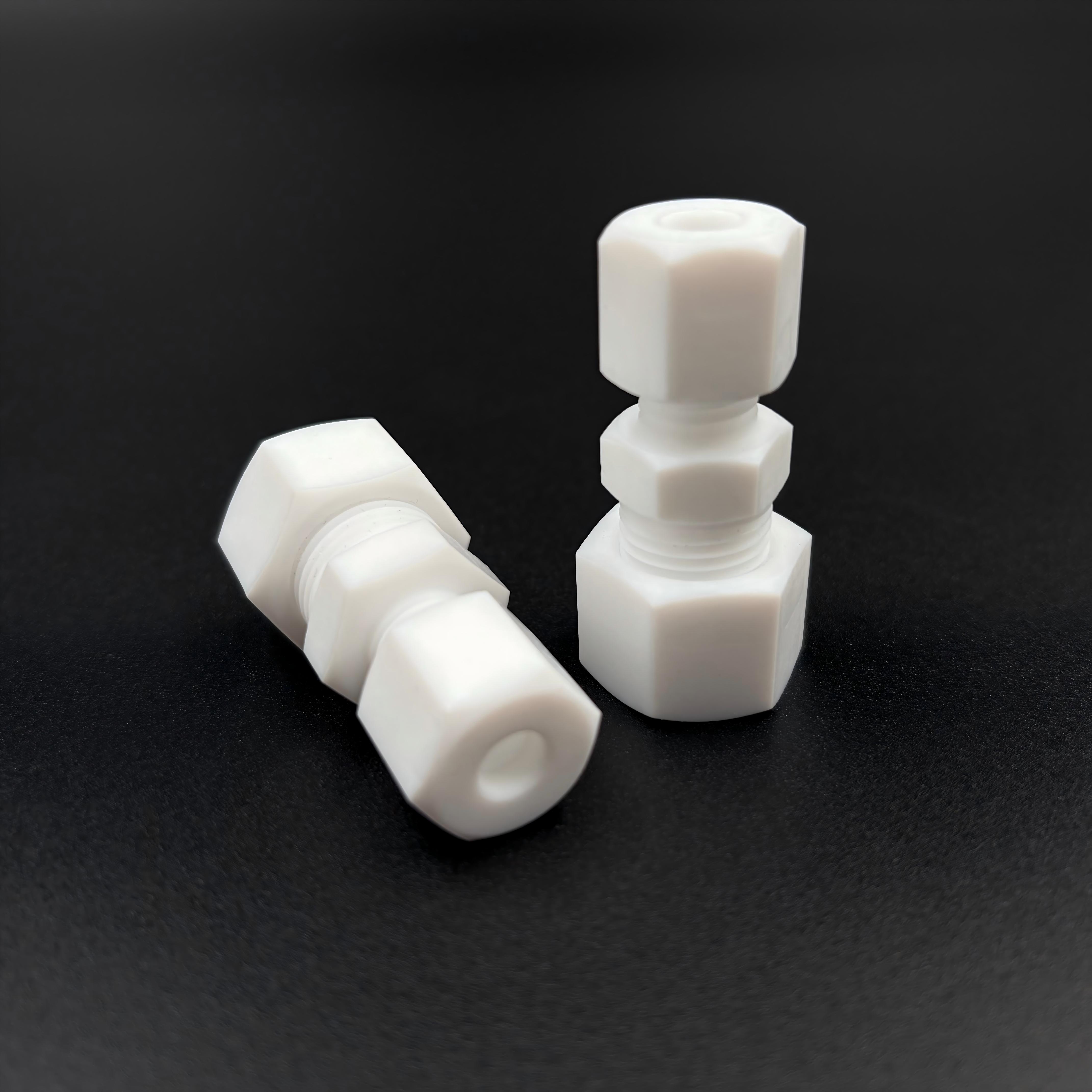

Design: Features a three-piece union design (two end pieces and a center nut). This allows pipes to be disconnected and reconnected quickly without any axial rotation, preventing stress on the piping system.
Benefit: Dramatically reduces maintenance downtime. The integrated PTFE gasket or cone-and-seat design ensures a reliable, leak-tight seal that can be reused multiple times without performance loss.
Exceptional Chemical Resistance
Material: Fabricated from 100% virgin PTFE, ensuring no additives or contaminants.
Benefit: Offers complete inertness to a vast array of aggressive media, protecting both the system and the fluid from contamination and corrosion.
Wide Thermal Stability & High Purity
Temperature Range: Operates reliably from -200°C to +260°C.
Surface: Ultra-smooth, non-stick surface (< 0.2 µm Ra) prevents fouling, ensures cleanability, and is ideal for ultra-pure applications.
Robust Pressure Rating & Mechanical Strength
Pressure Capacity: Rated for working pressures up to 10 bar (145 psi) at 20°C.
Construction: Precision-machined for perfect alignment and uniform sealing force when the union nut is tightened, guaranteeing structural integrity.
Versatile Configurations
Sizes: Available in standard sizes from DN8 (¼") up to DN50 (2").
End Connections: Can be supplied with female threaded ends (NPT, BSPP), flanged ends, or a mix to suit existing pipeline configurations.
Technical Data at a Glance
Recommended Applications & Compatible Media
The PTFE Union Connector is indispensable in industries requiring frequent maintenance, high purity, or handling of corrosive substances.
Ideal Industries:
Chemical & Pharmaceutical Processing: For filter housings, pump connections, reactor feed lines, and sampling systems requiring regular disassembly.
Semiconductor Manufacturing: In ultra-pure water (UPW) and high-purity chemical distribution systems for tool connections.
Food & Beverage: As a sanitary, cleanable connection for processing lines (with appropriate certifications).
Analytical & Laboratory: Providing flexible, inert connections for instrumentation and pilot-scale systems.
Compatible Media (Including but not limited to):
Strong Acids: Hydrochloric acid (all concentrations), Sulfuric acid (up to 98%), Nitric acid, Hydrofluoric acid (consult for specific concentration and temperature).
Strong Bases/Caustics: Concentrated sodium hydroxide, Potassium hydroxide.
Aggressive Solvents: Acetone, Toluene, Chloroform, Dimethylformamide (DMF).
High-Purity Fluids: Deionized (DI) water, WFI (Water for Injection), sensitive pharmaceutical intermediates.
Oxidizers & Halogens: Chlorine water, Bromine solutions (within temperature limits).
Note: For critical applications with specific media, pressure, and temperature combinations, our technical team should be consulted for a formal compatibility review.
