Leakage in fluid piping is often caused by unstable connections, material incompatibility, poor sealing compression, or installation errors. A PVDF Quick Connector with an O-ring seal is designed to create a secure, fast, and chemically resistant connection for piping systems that handle water, chemicals, cleaning fluids, or other process media. By combining PVDF material strength with elastic O-ring sealing, a PVDF Quick Connector can reduce leakage risk, simplify maintenance, and improve the reliability of compact piping layouts.
● PVDF Quick Connector offers fast pipe connection and disconnection.
● O-ring sealing improves leak-resistant piping performance.
● PVDF material provides strong chemical and corrosion resistance.
● A PVDF Quick Connector is suitable for demanding fluid systems.
● Proper size, media compatibility, and O-ring material are critical.
● Snap-fit structures can reduce installation time and maintenance effort.

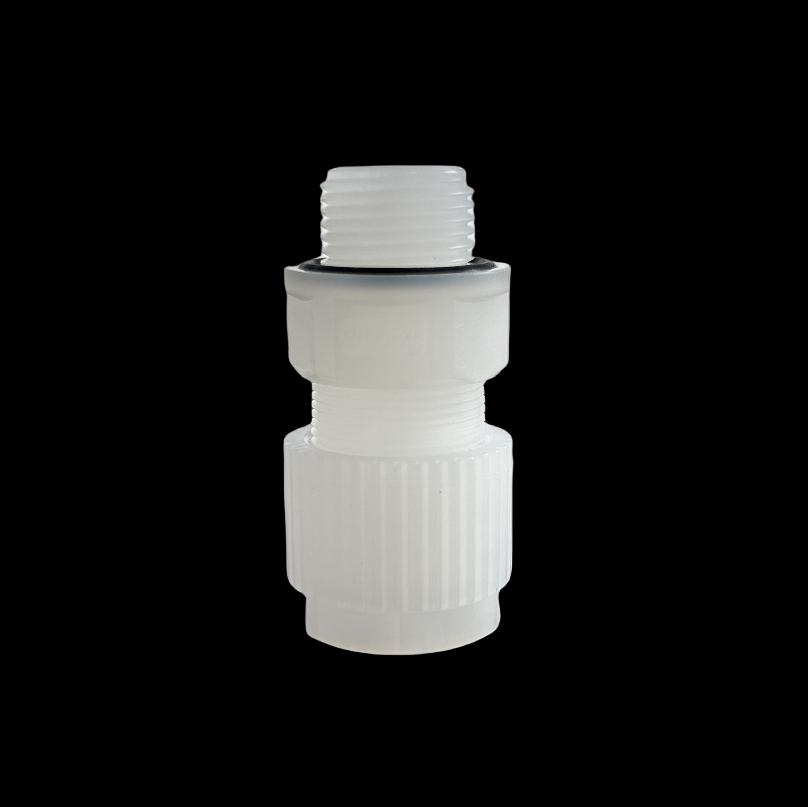

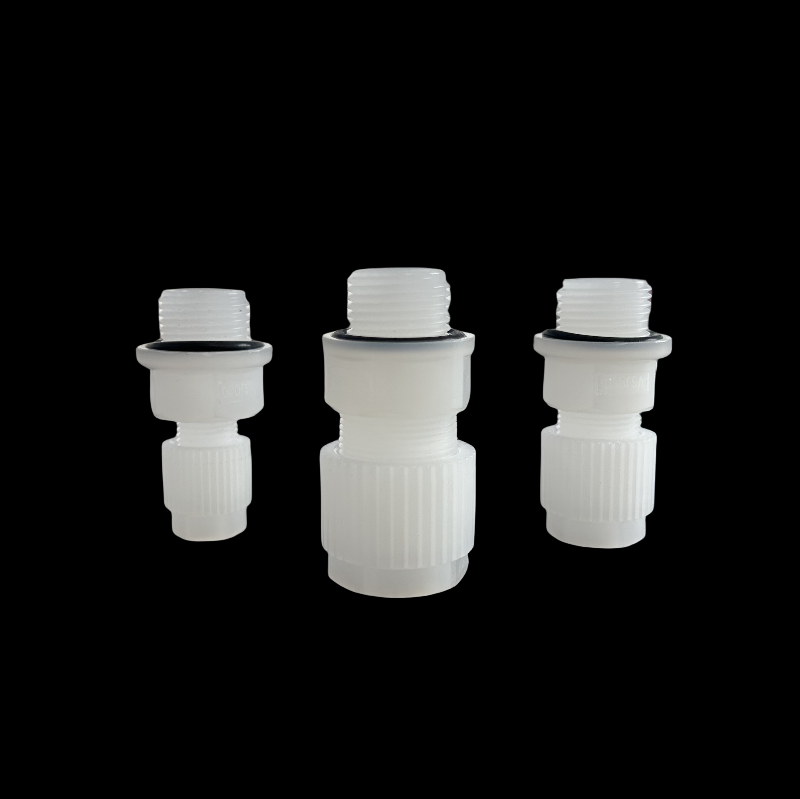

A PVDF Quick Connector is a pipe connection component designed for fast assembly without complicated installation procedures. In many fluid systems, the connector uses a snap-fit or quick-locking structure to hold the pipe or mating part in place with stable positioning. Compared with traditional threaded fittings, a PVDF Quick Connector can shorten assembly time while maintaining a controlled sealing interface.
The O-ring inside a PVDF Quick Connector creates elastic compression between the connector body and the pipe surface. This compression fills small gaps that may otherwise become leakage paths under pressure, vibration, or temperature change. When the O-ring material is correctly matched to the fluid, a PVDF Quick Connector can maintain more stable sealing performance over long service periods.
PVDF offers stronger chemical resistance and better mechanical stability than many common plastics used in pipe fittings. A PVDF Quick Connector is often selected where corrosion, chemical attack, or dimensional deformation could cause premature leakage. Because PVDF can maintain its structure in demanding environments, the sealing area of a PVDF Quick Connector is less likely to lose alignment during operation.
Component | Main Function | Contribution to Leak Resistance |
PVDF connector body | Provides structural support | Maintains stable pipe alignment |
O-ring seal | Creates elastic sealing compression | Blocks leakage paths between surfaces |
Snap-fit structure | Locks the connection quickly | Reduces loosening caused by poor assembly |
Pipe interface | Matches the connected pipe | Controls fit, compression, and sealing position |
Retaining area | Holds the pipe or mating part | Improves connection stability under use |
A PVDF Quick Connector is suitable for many applications involving acids, cleaning agents, solvents, and corrosive process fluids. Chemical attack can weaken ordinary connector materials, causing swelling, cracking, or surface degradation near the sealing area. With better resistance to many aggressive media, a PVDF Quick Connector can reduce material-related leakage failures.
A leak-resistant connection depends not only on the O-ring but also on the stability of the connector body. A PVDF Quick Connector provides reliable mechanical support so that the pipe and O-ring remain properly positioned under normal operating pressure. If the connector body deforms, the O-ring compression may become uneven, but a properly designed PVDF Quick Connector reduces that risk.
Temperature changes can affect pipe fittings by expanding materials, hardening seals, or reducing clamping stability. A PVDF Quick Connector performs well in many industrial temperature conditions compared with lower-grade plastics. Long-term aging resistance also allows a PVDF Quick Connector to maintain safer sealing geometry across repeated operating cycles.
The main advantage of a PVDF Quick Connector with O-ring seal is its ability to form a controlled sealing interface. The O-ring supplies elastic pressure, while the PVDF body keeps the pipe centered and supported. When installation conditions are correct, a PVDF Quick Connector can reduce leakage caused by loose threads, uneven tightening, or poor sealing contact.
A PVDF Quick Connector is designed for quick assembly, which is useful in equipment with repeated maintenance or modular piping changes. The snap-fit connection method can reduce the need for thread sealing tape, adhesives, or complex tools. In systems where downtime affects output, a PVDF Quick Connector can make replacement more efficient and predictable.
Leaks often lead to unplanned inspection, cleaning, part replacement, and system shutdown. A PVDF Quick Connector can reduce maintenance risk by improving connection repeatability and sealing consistency. When the O-ring, pipe size, and fluid compatibility are properly selected, a PVDF Quick Connector can provide a more stable connection than improvised or mismatched fittings.
Modern fluid systems often require compact layouts with limited installation space. A PVDF Quick Connector can fit into tight piping arrangements because it allows direct and fast connection without large tooling clearance. For dosing units, filtration systems, laboratory equipment, and treatment modules, a PVDF Quick Connector can simplify the pipe route while keeping the sealing point accessible.
Application Need | Typical Problem | PVDF Quick Connector Advantage |
Chemical transfer | Corrosion and material swelling | PVDF resists many aggressive fluids |
Water treatment | Frequent maintenance and part replacement | Quick connection reduces service time |
Compact equipment | Limited installation space | Snap-fit design supports tight layouts |
Dosing systems | Small leaks affect dosing accuracy | O-ring seal improves sealing control |
Filtration systems | Repeated disassembly required | Connector supports easier pipe access |
A PVDF Quick Connector is commonly used in water treatment equipment where corrosion resistance and sealing reliability are important. Filtration systems may require regular cartridge replacement, line inspection, or component cleaning, making quick connection valuable. In these systems, a PVDF Quick Connector can support stable pipe connections while reducing unnecessary disassembly complexity.
Chemical dosing lines require connectors that can resist chemical exposure while maintaining accurate flow delivery. A PVDF Quick Connector can be used in dosing systems where leakage may affect concentration control, safety, or equipment cleanliness. Because chemical compatibility is critical, the PVDF body and O-ring material of a PVDF Quick Connector should always be checked against the actual fluid.
Laboratory equipment often uses compact fluid paths and requires clean, stable, and repeatable connections. A PVDF Quick Connector can be suitable for analytical instruments, test equipment, and small process systems where quick servicing is needed. The chemical resistance of a PVDF Quick Connector is especially useful when the system handles reagents, cleaning liquids, or controlled fluid samples.
Industrial equipment frequently uses modular piping sections that must be assembled, inspected, or replaced without extensive downtime. A PVDF Quick Connector can support modular construction by making pipe connections easier to standardize. In these environments, a PVDF Quick Connector can reduce variation caused by manual tightening and improve sealing repeatability across multiple units.
The pipe size must match the PVDF Quick Connector precisely because sealing performance depends on dimensional fit. If the pipe is too small, O-ring compression may be insufficient; if it is too large, the seal or connector body may be damaged during insertion. A correct PVDF Quick Connector should match the pipe outer diameter, insertion depth, and locking structure required by the system.
Pressure and temperature influence how a PVDF Quick Connector performs during long-term operation. Higher pressure increases the force acting on the sealing area, while temperature changes can affect both PVDF and O-ring elasticity. Before selecting a PVDF Quick Connector, the working pressure, peak pressure, continuous temperature, and cleaning temperature should be reviewed together.
The O-ring is a critical part of any PVDF Quick Connector, and its material must match the fluid conditions. EPDM, FKM, NBR, and other elastomers have different resistance to acids, oils, solvents, oxidizers, and cleaning chemicals. Even when the PVDF body is compatible, the wrong O-ring inside a PVDF Quick Connector can swell, crack, harden, or lose sealing force.
The installation environment affects whether a PVDF Quick Connector can perform consistently. Vibration, pipe movement, misalignment, and external pulling force may reduce sealing stability if the piping is not supported correctly. A PVDF Quick Connector should be installed with proper pipe alignment and without excessive side load on the sealing area.
A PVDF Quick Connector with O-ring seal is a practical solution for piping systems that require chemical resistance, quick installation, compact structure, and leak-resistant performance. Its reliability depends on the combined performance of PVDF material, O-ring compatibility, pipe fit, pressure range, and correct installation. For applications requiring a snap-fit PVDF Quick Connector for O-ring piping, VSJOCO Zixing Yuguang Pipeline System Co., Ltd. provides relevant pipeline connection solutions for demanding fluid system requirements.
A PVDF Quick Connector is used to create fast and secure pipe connections in fluid handling systems. It is often selected for water treatment, chemical dosing, filtration, laboratory equipment, and compact process piping. Because a PVDF Quick Connector combines PVDF material with quick assembly, it is suitable for systems requiring both chemical resistance and efficient maintenance.
The O-ring in a PVDF Quick Connector provides elastic compression between the pipe and connector body. This sealing compression reduces leakage paths that may occur from small dimensional gaps or surface irregularities. A PVDF Quick Connector with the correct O-ring material can provide stable sealing under suitable pressure, temperature, and fluid conditions.
PVDF is widely used in chemical-resistant piping components because it resists many acids, solvents, and corrosive fluids. A PVDF Quick Connector can be suitable for chemical systems when the PVDF body and O-ring are compatible with the actual media. Compatibility should always be checked according to chemical type, concentration, temperature, and exposure duration.
