VSJOCO

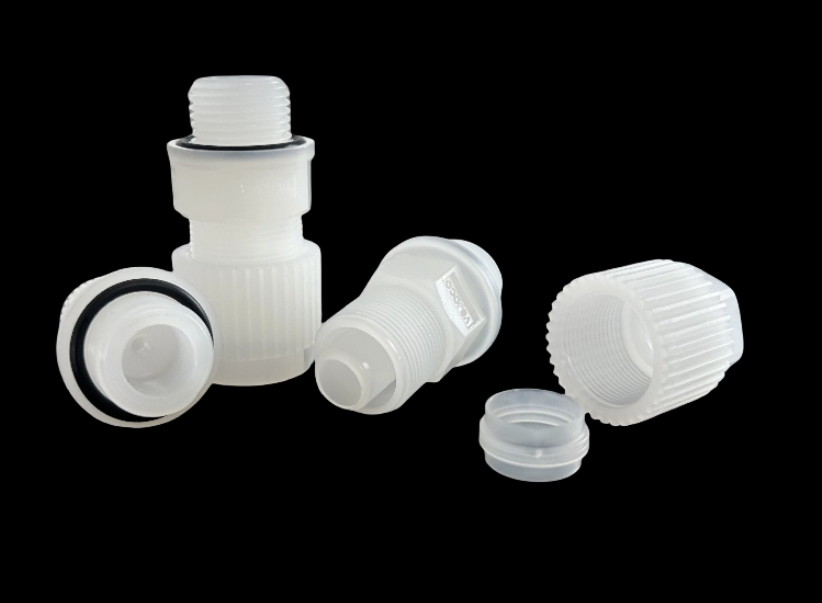

Manufactured from high-purity industrial-grade PVDF, this connector features an innovative snap-fit locking structure paired with a precision O-ring sealing system, delivering tool-free installation and zero-leak performance for aggressive media transfer. It is the preferred connection component for industrial business clients operating in corrosive, high-purity, or extreme weather piping applications.
Engineered from virgin high-purity PVDF (Polyvinylidene Fluoride), our PVDF O-Ring Quick Connector delivers exceptional resistance to strong acids, strong alkalis, organic solvents, and halogen compounds, outperforming standard plastic connectors in corrosive conditions. The material also offers superior UV resistance, weatherability, and hydrolytic stability, making it suitable for both indoor and outdoor long-term operation.
The tool-free snap-fit locking mechanism enables 1-second installation, drastically reducing on-site assembly time and labor costs for industrial projects. The dual O-ring sealing system creates a redundant, vibration-resistant seal that maintains leak-free performance even in dynamic piping systems, with no risk of loosening under pressure fluctuations or mechanical vibration.
With ultra-low leachables and extractables, our corrosion resistant PVDF connector is ideal for high-purity media transfer, with no risk of fluid contamination. The material is inherently resistant to hydrolysis, aging, and chemical degradation, delivering a service life 3× longer than standard polyamide connectors in harsh environments, reducing replacement frequency and total cost of ownership.
Parameter | Specification Details |
|---|---|
Core Material | Virgin High-Purity PVDF |
Connector Type | Snap-Fit O-Ring Quick Connector |
Compatible Pipe Size | NW22 to NW26 (Custom Sizes Available) |
Rated Working Pressure | 0 to 10 Bar |
Working Temperature Range | -30℃ to +150℃ |
Sealing Components | Food-Grade EPDM / High-Temp Viton O-Rings (Customizable) |
Connection Mode | Tool-Free Snap-Fit Push-to-Connect |
Compliance Certification | RoHS, REACH, FDA Compliant (Optional) |
Compatible Media | Strong Acids/Alkalis, Organic Solvents, High-Purity Water, Seawater, Corrosive Chemicals |
Pre-installation preparation: Ensure the pipe end is cut square, free of scratches, burrs, or deformation, and matches the connector’s nominal size exactly. Inspect the O-rings for damage, deformation, or foreign debris, and apply a thin layer of media-compatible lubricant if needed.
Assembly: Align the prepared pipe with the Snap-Fit PVDF Quick Connector port, and push firmly until you hear an audible click from the snap-fit locking mechanism, confirming full engagement.
Validation: Perform an axial pull test to verify the pipe is securely locked and cannot be dislodged. Conduct a 1.5× rated pressure hydrostatic test to confirm zero leakage before full system operation.
Operation note: Avoid sharp bends or lateral stress on the connection point, and ensure operating conditions do not exceed the rated temperature and pressure limits to preserve seal integrity.
Our industrial PVDF quick connector is engineered for the most demanding industrial sectors, including:
Chemical Processing & Petrochemical Manufacturing: Corrosive chemical transfer and distribution lines
Semiconductor & Microelectronics: Ultra-high purity chemical and DI water delivery systems
Seawater Desalination & Marine Engineering: Seawater intake, filtration, and distribution piping
Pharmaceutical & Biotechnology: Sanitary high-purity fluid transfer lines
Wastewater Treatment & Industrial Effluent Processing: Corrosive effluent handling systems
Electroplating & Surface Finishing: Plating solution and chemical bath circulation lines
We provide end-to-end customization for industrial business clients with unique project requirements, including custom pipe sizes, specialized O-ring material configurations (EPDM, Viton, PTFE), custom port designs, and color coding for system safety identification. Our bulk procurement program offers tiered competitive pricing, dedicated account management, fixed lead times for high-volume orders, and flexible minimum order quantities to accommodate both large-scale continuous manufacturing runs and small-batch custom project needs.
Our PVDF connector offers exceptional compatibility with over 90% of industrial chemicals, including strong inorganic acids, alkalis, halogen compounds, and most organic solvents. Our technical team can provide detailed chemical compatibility charts and custom material recommendations for specialized media.
No. The innovative snap-fit locking mechanism is designed for completely tool-free installation and removal, cutting assembly time by up to 80% compared to traditional threaded or welded connections, and enabling rapid on-site maintenance and system retrofitting.
Whether you need standard bulk Snap-Fit PVDF Quick Connector units or a fully customized corrosion-resistant piping connection solution, our technical and sales team is ready to support your project. Contact us today to receive a personalized quote, free technical consultation, and sample validation services for your most demanding industrial piping applications.
