VSJOCO

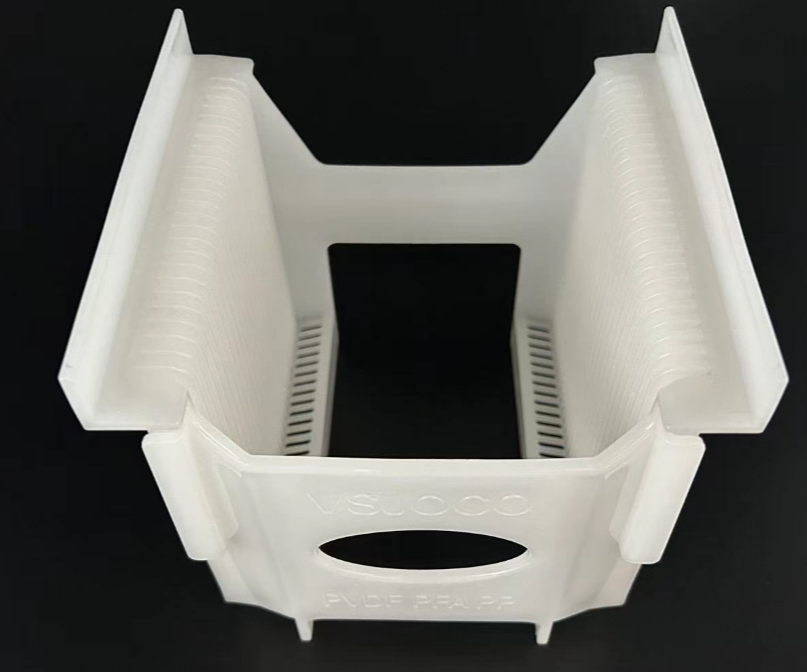

A PVDF wafer carrier is a precision-machined tray designed to hold individual silicon wafers in separate slots during manufacturing, transport and storage. Its primary function is to isolate wafers from physical contact with external surfaces and environmental contaminants, while maintaining structural integrity during automated handling processes. Each carrier is dimensionally calibrated to ensure precise alignment with production equipment, minimizing the risk of wafer breakage or process interruptions.
Unlike alternative materials such as polypropylene (PP), polyether ether ketone (PEEK) and polytetrafluoroethylene (PTFE), PVDF delivers a balanced combination of properties tailored to semiconductor manufacturing requirements. PP offers limited chemical resistance and degrades rapidly under repeated cleaning cycles. PEEK provides mechanical strength but comes with higher material costs and elevated leachable levels. PTFE exhibits excellent chemical inertness but lacks sufficient mechanical stability for automated systems. PVDF resolves these tradeoffs, making it the preferred material for high-volume wafer processing.
VSJOCO wafer carriers withstand repeated exposure to strong acids, alkalis and organic solvents used in semiconductor wet processes. Testing confirms performance remains consistent after 1000+ standard SC1/SC2 cleaning cycles. This resistance allows carriers to operate reliably in harsh chemical environments, reducing replacement frequency and associated production downtime.
Manufactured to SEMI F57 high-purity standards, our PVDF carriers demonstrate metal ion leaching levels below 1ppb as verified by ICP-MS analysis. Particle release is controlled to less than 0.1 particles per square centimeter for particles measuring 0.2μm or larger. These low leachable and particle characteristics prevent wafer contamination, directly contributing to improved product yields for manufacturing clients.
The carriers maintain structural integrity across a temperature range of -40°C to 150°C. This dimensional stability ensures consistent performance during high-temperature process steps and automated handling operations, eliminating risks of equipment jamming or wafer breakage caused by material deformation.
PVDF exhibits natural anti-static characteristics with a surface resistivity of 10×10^9 - 10×10^11 Ω/sq. Unlike carriers that require added anti-static agents, our PVDF carriers eliminate the risk of secondary contamination from additive leaching, while providing reliable protection for sensitive circuit structures against electrostatic discharge.
Wafer transport between fabrication process steps and long-term storage in Class 100+ cleanroom environments
Wet process operations including etching, cleaning, photoresist stripping and chemical bath immersion
Integration with fully automated wafer handling systems and compatibility with standard FOUP and FOSB transfer containers
Photovoltaic silicon wafer production and micro-electro-mechanical systems (MEMS) manufacturing
Parameter | Specification |
|---|---|
Material | High-purity PVDF (SEMI F57 compliant) |
Compatible Wafer Sizes | 100mm, 150mm, 200mm, 300mm |
Standard Slot Count | 25 slots |
Operating Temperature Range | -40°C to 150°C |
Chemical Compatibility | Strong acids, strong bases, most organic solvents |
Surface Resistivity | 10×10^9 - 10×10^11 Ω/sq |
Metal Ion Leaching | <1ppb (ICP-MS tested) |
Particle Generation | <0.1 particles/cm² (≥0.2μm) |
All VSJOCO PVDF wafer carriers are manufactured in Class 1000 cleanroom facilities with strict process controls at every production stage. Each unit undergoes comprehensive inspection before shipment, including dimensional verification, particle count testing and chemical purity analysis. Our manufacturing processes are certified to ISO 9001 standards, and all products comply with RoHS and REACH regulations. We provide full test reports with every order to support your quality documentation requirements.
We offer tailored solutions to meet specific production needs, including non-standard wafer sizes, custom slot configurations, color coding for process identification, laser marking of part numbers and QR codes, and complementary components such as handles, covers and alignment pins. Our engineering team works directly with your technical staff to develop solutions that integrate seamlessly with your existing equipment and workflows.
PVDF carriers offer comparable mechanical and chemical performance to PEEK carriers at a lower material cost, while demonstrating significantly lower leachable levels, making them more suitable for high-purity semiconductor applications.
Yes, we offer sample units for evaluation in your specific process environment. Sample lead times are typically 3-5 business days for standard configurations.
Standard orders ship within 7-10 business days. Custom orders require 15-20 business days depending on complexity.
Our carriers are designed to meet industry standard dimensions and are compatible with most mainstream automated wafer handling systems, including those from Applied Materials, Lam Research and Tokyo Electron.
We source PVDF resin exclusively from certified suppliers that meet SEMI F57 standards. All raw materials undergo incoming ICP-MS testing, and finished products are retested for metal ion content and particle generation before shipment.
Contact our technical sales team today to request a detailed quote or product sample. We respond to all inquiries within 24 hours and provide personalized support to help you select the optimal carrier solution for your manufacturing operations. Bulk order pricing and volume discounts are available for qualified industrial purchasers.
