VSJOCO

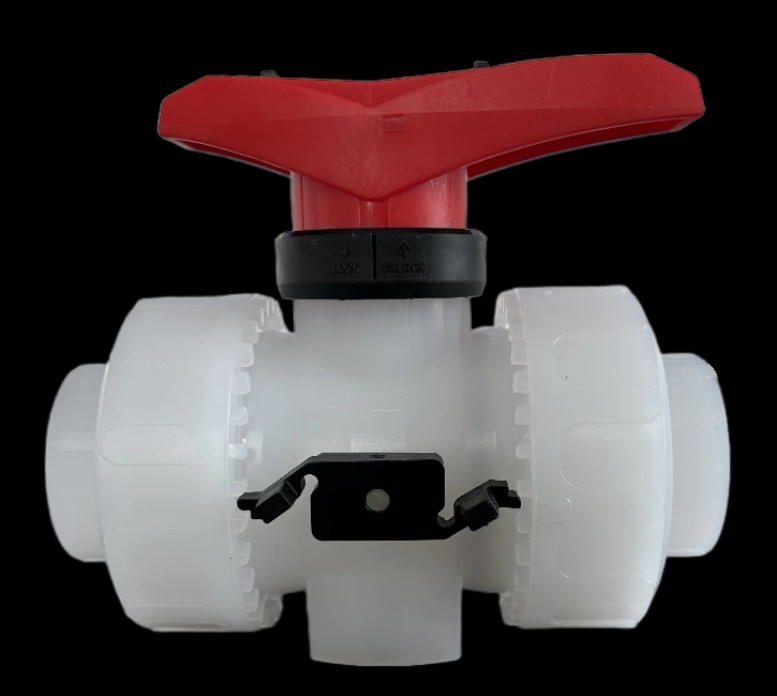

Manufactured from premium virgin polyvinylidene fluoride (PVDF) material, our PVDF socket welding ball valve delivers exceptional durability and reliable shut-off performance, making it the preferred choice for industrial clients requiring long-term stability in corrosive, high-pressure, and extreme-temperature operating environments. The socket weld connection design ensures a seamless, permanent fit with standard piping systems, eliminating common leakage risks associated with threaded connections in continuous hydraulic operations.
Our PVDF socket weld ball valve exhibits outstanding resistance to strong acids, alkalis, organic solvents, and oxidizing media, outperforming traditional metal and plastic valve alternatives. This inherent corrosion resistance drastically reduces component replacement frequency, minimizing unplanned downtime and lowering total operational costs for industrial facilities.
Engineered for hydraulic system compatibility, this valve maintains consistent flow control and pressure retention across a wide operating range. It supports continuous working pressure up to 16 bar, with a temperature tolerance spanning -40℃ to 140℃, ensuring reliable performance even in fluctuating process conditions. The full-port ball design minimizes flow resistance, optimizing hydraulic system efficiency for high-volume fluid transfer.
The integrated socket weld connection creates a permanent, fusion-bonded joint between the valve and piping, delivering superior leak tightness compared to mechanical connection types. This design eliminates the risk of loosening under vibration or thermal cycling, making it ideal for critical industrial piping systems where zero leakage is non-negotiable.
Parameter | Specification |
|---|---|
Valve Type | 2-Port Full-Port Ball Valve |
Body Material | Virgin PVDF |
Connection Type | Socket Weld |
Nominal Size Range | DN15 – DN100 (1/2” – 4”) |
Maximum Operating Pressure | 16 bar @ 20℃ |
Operating Temperature Range | -40℃ to 140℃ |
Seal Material | PTFE / FKM |
Standard Compliance | ISO 9393, ASTM D1784 |
Actuation Compatibility | Manual, Pneumatic |
To ensure optimal performance of your PVDF socket welding ball valve, follow these industrial-grade installation guidelines:
Pre-installation: Inspect the valve body and socket ends for damage; ensure piping ends are cut square, deburred, and cleaned for full socket insertion.
Welding Process: Use PVDF-calibrated socket fusion equipment, strictly following recommended temperature (210℃ to 230℃) and heating time parameters based on pipe size. Avoid overheating to prevent material deformation.
Alignment & Cooling: Maintain perfect axial alignment during welding and cooling. Allow the joint to cool completely under zero stress before applying system pressure.
Post-installation: Conduct a hydrostatic pressure test at 1.5× the maximum working pressure to verify joint integrity before commissioning.
Our Hydraulic PVDF Ball Valve Socket Weld Piping addresses critical fluid control challenges across multiple industrial sectors:
Chemical Processing: Transfer and control of corrosive acids, alkalis, and chemical intermediates
Industrial Water & Wastewater Treatment: Chemical dosing, filtration systems, and effluent handling lines
Hydraulic Piping Systems: Closed-loop hydraulic circuits in manufacturing and material handling equipment
Pharmaceutical & Biotechnology: Ultra-pure water systems and sterile process fluid lines
Semiconductor Manufacturing: Chemical delivery systems in wafer fabrication processes
We offer comprehensive customization options for our PVDF socket weld ball valve, including custom nominal sizes, specialized seal materials for extreme media, and pneumatic/electric actuation compatibility. For bulk procurement buyers, industrial project contractors, and system integrators, we provide competitive tiered pricing, flexible lead times, dedicated account management, and end-to-end technical support. We support both small-batch prototype orders and large-volume production runs to match your project scale.
Our PVDF ball valve supports a maximum continuous operating temperature of 140℃, with short-term peak tolerance up to 160℃ for non-continuous operations.
Yes. The virgin PVDF body delivers exceptional resistance to strong oxidizing agents including chlorine, hydrogen peroxide, and nitric acid, making it suitable for harsh chemical processing.
Standard bulk orders have a lead time of 15–20 working days; customized orders require 25–30 working days, adjusted based on volume and complexity.
Whether you are sourcing valves for a new industrial project, upgrading your existing hydraulic piping system, or placing a bulk procurement order, VSJOCO is your trusted partner for high-performance PVDF fluid control solutions. Send us your project specifications, required quantity, and customization needs today, and our dedicated technical sales team will provide you with a tailored, no-obligation quote within 24 working hours.
