Building a Perfect Piping System: An In-Depth Analysis of the Core Differences Between Couplings and Connectors

In the field of corrosive fluid transfer, selecting the correct pipeline connections is as crucial as choosing the main pipes themselves. As a professional manufacturer of PPH (Polypropylene Homopolymer) and PVDF (Polyvinylidene Fluoride) piping components, we are often asked about the difference between "Couplings" and "Connectors." This is not merely a matter of terminology; it directly impacts the rationality of system design, installation convenience, and operational reliability.

Simply put, the core difference lies in their functional positioning:

• Coupling: Focuses on "continuation", connecting similar pipes to extend or repair the pipeline.

• Connector: Focuses on "transition", joining different components to achieve a change in interface, direction, or function.

I. Coupling: The System's "Extender" and "Repairer"

Core Function: Joining two pipes of the same material and diameter to extend a run or replace a damaged section.

Features and Applications of Our PPH/PVDF Couplings:

• Same Material & Diameter: Our PPH Couplings are specifically for connecting two PPH pipes, and PVDF Couplings for PVDF pipes. This ensures material consistency at the joint, maintaining uniform corrosion resistance and socket fusion welding strength.

• Excellent Sealing: Creates a permanent connection via socket fusion or threading, with strength comparable to the pipe itself, fundamentally preventing leak points.

• Primary Application Scenarios:

• Pipeline Extension: When needing to increase the length of a pipeline.

• Pipeline Repair: Using a Coupling to repair a section after a damaged part has been cut out.

In short, choose a Coupling when you need to "make a single, continuous path longer."

II. Connector: The System's "Adapter" and "Builder"

Core Function: Acting as the system's interface, connecting pipes to other different components, such as equipment, valves, instruments, or pipes of different specifications.

Diversity and Function of Our PPH/PVDF Connectors:

• Interface Conversion: e.g., Barbed Hose Connectors, which convert the external thread of a PPH/PVDF pipe into a barbed interface for easy hose connection.

• Changing Direction/Path: Such as Elbows, Tees, Crosses. These are essentially Connectors used to build complex piping networks.

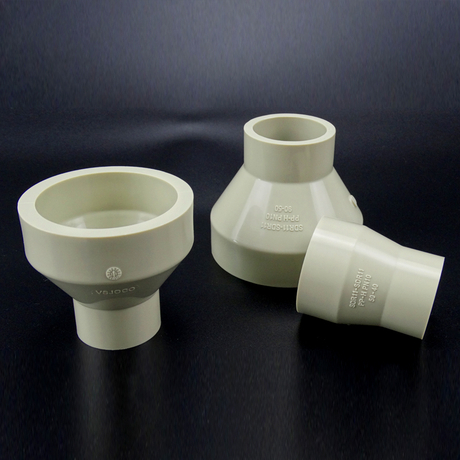

• Changing Size: Such as Reducers, for connecting two pipes of different diameters.

• Terminating Flow: Such as Caps and Plugs, used to seal the end of a pipeline.

In short, choose a Connector when you need to "connect a device to the end of the line" or need to "build interchanges and branch roads."

III. Summary Table of Core Differences

IV. How to Correctly Select Based on Operating Conditions?

As a user, follow this selection logic:

1. Define the Connection Purpose:

• Is it just to extend a pipe? -> Choose a Coupling.

• Need to turn, branch, connect equipment, or change size? -> Choose a Connector.

2. Ensure Material Compatibility:

• The PPH or PVDF material must be selected based on the chemical nature, temperature, and pressure of the fluid being conveyed. PPH offers good resistance to most inorganic acids and alkalis, while PVDF is the superior choice for handling strong acids, strong alkalis, and strong oxidizing agents.

3. Consider the Connection Method:

• We offer components with various connection methods: Socket Fusion, Threaded, Flanged. Socket fusion provides the most reliable seal, while threaded and flanged connections facilitate disassembly and maintenance.

Conclusion:

In high-purity, highly corrosive fluid transfer systems built with PPH and PVDF, every connection point is a potential risk. Precisely understanding the roles of Couplings and Connectors, and selecting high-quality components manufactured by a professional producer, is the cornerstone of ensuring a safe, stable, and long-lasting system.

We are not just a supplier of components; we are your technical partner in building the perfect piping system. Please feel free to discuss your specific operating conditions with us for the most professional product selection advice.
