Efficient pipe connections are essential in chemical and industrial systems where downtime must be minimized, and reliability maximized. This article offers a practical guide to PPH pipe fitting quick connectors, explaining their types, standards, installation processes, and best practices for selecting connectors suitable for corrosive and hot liquid applications.
At VSJOCO Zixing Yuguang Pipeline System Co., Ltd., we specialize in high-quality PPH fittings and connectors designed for fast assembly, durability, and chemical resistance, providing solutions that meet industry demands.

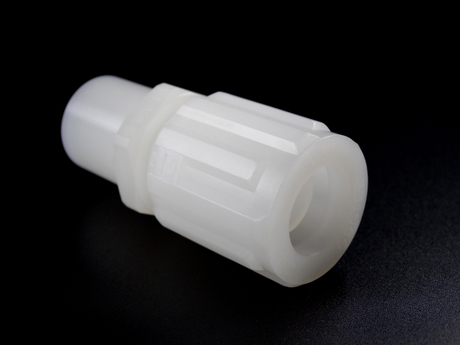

PPH connectors are specialized pipe fittings made from polypropylene homopolymer (PPH), a thermoplastic renowned for its excellent chemical resistance, mechanical strength, and temperature tolerance. Unlike standard fittings such as fusion joints or threaded unions, PPH connectors focus on ease and speed of installation, enabling modular piping systems that can be assembled or disassembled quickly without the need for complex tools or extensive curing times.
These connectors have revolutionized piping installations by reducing labor time and minimizing the risk of human error during assembly. Their design allows for flexibility in system modifications, which is especially valuable in industries where process requirements evolve rapidly or frequent maintenance is expected.
Quick-connects are designed for rapid, tool-free assembly. Their locking mechanisms allow pipes to snap securely together, making them ideal for maintenance or systems requiring frequent disassembly. However, they may have lower pressure ratings than fusion joints.
Fusion joints involve heating the pipe ends and fittings to create a permanent, seamless bond. They offer superior mechanical strength and are preferred for high-pressure or long-term installations but require specialized equipment and more installation time.
Threaded unions screw together like traditional pipe threads and offer moderate assembly speed and repairability. They may be vulnerable to leaks over time due to thread wear or vibration.
Each connector type offers different advantages depending on the installation environment, operational demands, and maintenance schedules. Understanding these tradeoffs allows engineers and procurement teams to select connectors best suited for their specific application.
Understanding the components of PPH connectors helps in selecting and maintaining them properly:
Seal: Usually made from chemical-resistant elastomers compatible with the transported fluids; ensures leak-tight joints. Seal materials such as EPDM, FKM, or PTFE are chosen based on chemical compatibility and temperature range.
Body: The main structural part fabricated from PPH, providing corrosion resistance and mechanical strength. Its lightweight nature reduces strain on piping supports.
Locking Mechanism: Could be snap-lock clips, threaded rings, or compression fittings, designed to secure the connection firmly while allowing for easy assembly or disassembly.
Correct selection and maintenance of these components ensure reliable operation, prevent leaks, and extend the service life of the piping system.
To ensure proper fit and reliable performance, it is critical to adhere to industry standards and verify connector specifications carefully.
PPH connectors must conform to standardized sizing rules to guarantee compatibility across different brands and systems. Common standards include ISO dimensional references and other regional specifications covering diameter, wall thickness, and tolerance.
For example, ISO 3458 and ISO 3459 provide guidelines on metric pipe dimensions and tolerances for plastic piping systems. Adhering to these standards ensures connectors from various manufacturers can be interchanged without issues, a crucial consideration for global supply chains.
Mating dimensions—such as pipe outer diameter, fitting inner diameter, and sealing surface dimensions—must be precisely matched to avoid leaks or premature failure.
High-quality PPH connectors are marked with material grades and manufacturing certifications that confirm compliance with chemical resistance, temperature tolerance, and mechanical strength requirements. Checking these markings ensures that the connectors can handle the intended service conditions, particularly in aggressive chemical environments or elevated temperatures.
Materials often carry certifications such as ISO 9001 for quality management or NSF/ANSI approvals for potable water applications, underscoring their reliability and safety.
Choosing the right installation method depends on the system's operational demands and maintenance needs.
Installing PPH quick connectors involves several simple but essential steps:
Clean the pipe ends and connector parts to remove debris or contaminants, as dirt can compromise seal integrity.
Align the pipe and connector properly to ensure a straight and secure joint, avoiding stress or bending.
Seat the pipe fully into the connector body until the locking mechanism engages; partial insertion can cause leaks.
Lock the mechanism firmly, ensuring it clicks or secures as per design.
Inspect visually to confirm a proper seal and alignment.
Pressure Test the system after installation to detect any leaks early.
This workflow minimizes installation time and allows rapid system changes or repairs, making quick connectors especially suitable for temporary or frequently serviced installations.
Quick connectors offer excellent repairability because they can be disconnected without cutting pipes, which is advantageous in modular or frequently serviced systems. However, they often have lower pressure and temperature ratings compared to fusion joints, and some designs may be more sensitive to vibration or mechanical shock.
Fusion joints provide superior strength and vibration tolerance but at the cost of installation complexity and difficulty in repair.
PPH pipe fittings and connectors must be selected with an eye to the chemical properties of the fluid and the operating conditions.
Seals must be compatible with the chemicals being transported, resisting swelling, degradation, or embrittlement. Pressure and temperature ratings often require derating connectors in hot or high-pressure conditions to maintain safety margins.
PPH connectors generally tolerate temperatures up to about 140°C, but quick connectors may have lower limits depending on the sealing materials used. For aggressive chemicals such as strong acids or solvents, choosing the correct seal and verifying PPH chemical compatibility is critical to avoid failures.
Quick connectors may not be suitable for applications involving:
Extremely high temperatures exceeding the seal or PPH body limits.
High-pressure systems where fusion joints provide necessary strength.
Long-term immersion in aggressive chemicals that might degrade sealing elements.
In these cases, fusion or threaded fittings provide more durable solutions. It’s essential to conduct a thorough risk assessment before specifying connector types in demanding environments.
Regular inspection ensures the integrity and safety of piping systems using PPH connectors.
Inspect connectors for:
Visible cracks, discoloration, or deformation in the fitting or seal.
Leakage signs such as drips or stains.
Loose locking mechanisms or corrosion on any metallic components in composite fittings.
Establish scheduled replacement intervals based on manufacturer recommendations and operating conditions to prevent failures. Preventive maintenance programs that include routine checks significantly reduce costly downtime and safety risks.
Maintaining an inventory of spare connectors and seals allows quick repairs and system downtime minimization. Stock the most commonly used sizes and types to facilitate maintenance.
Good inventory management is crucial, especially for facilities with complex piping networks, ensuring readiness for emergency repairs without long lead times.
PPH pipe fitting quick connectors provide versatile, efficient solutions for piping systems requiring fast assembly and modularity without compromising chemical resistance and mechanical strength. VSJOCO Zixing Yuguang Pipeline System Co., Ltd. offers a comprehensive range of high-quality PPH connectors designed to meet industry standards and demanding application requirements. Whether you are installing new chemical lines or upgrading existing systems, choosing the right PPH connectors can improve reliability, reduce downtime, and simplify maintenance.
For tailored connector kits and expert guidance on choosing the right PPH connectors for your chemical or hot liquid piping systems, contact us today.
