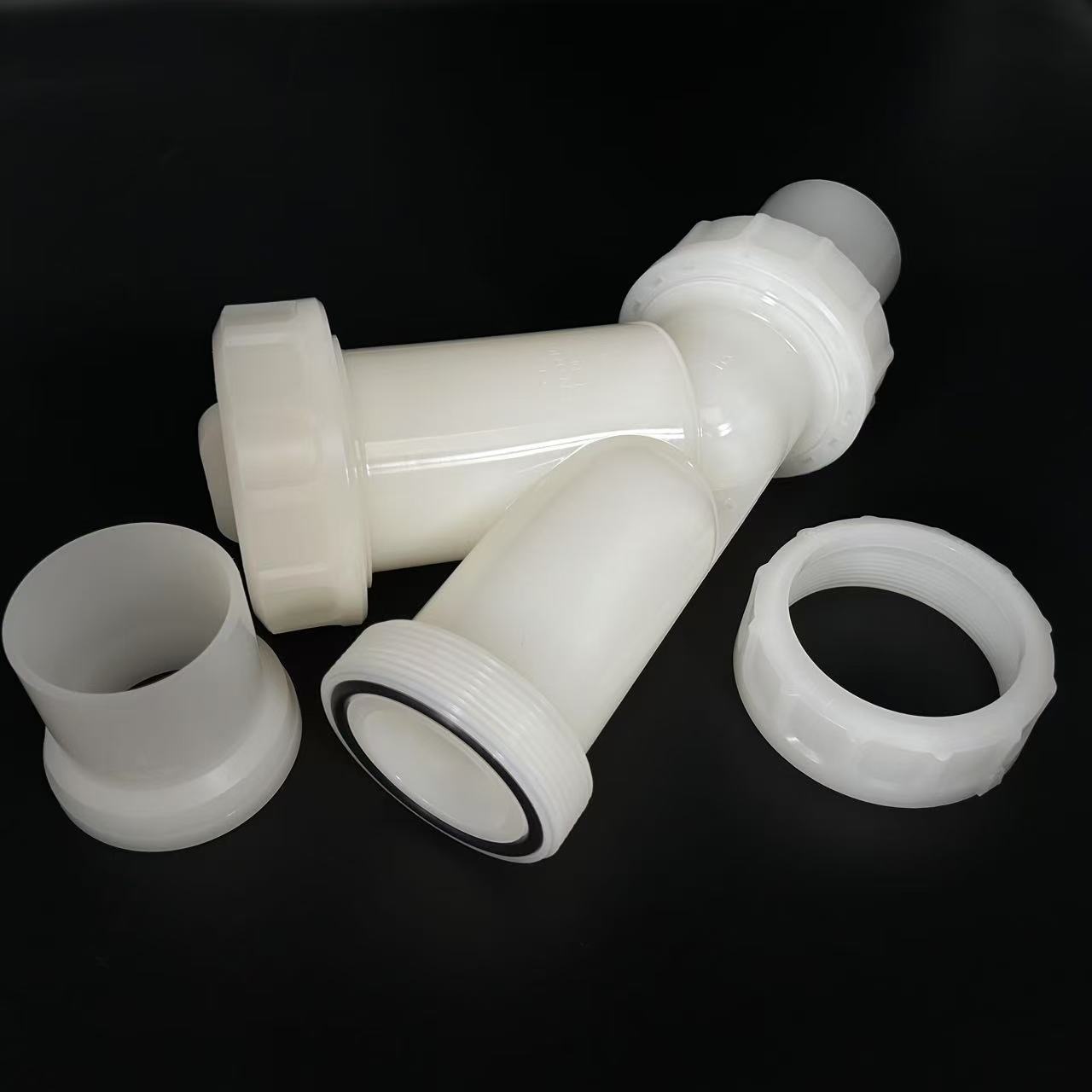

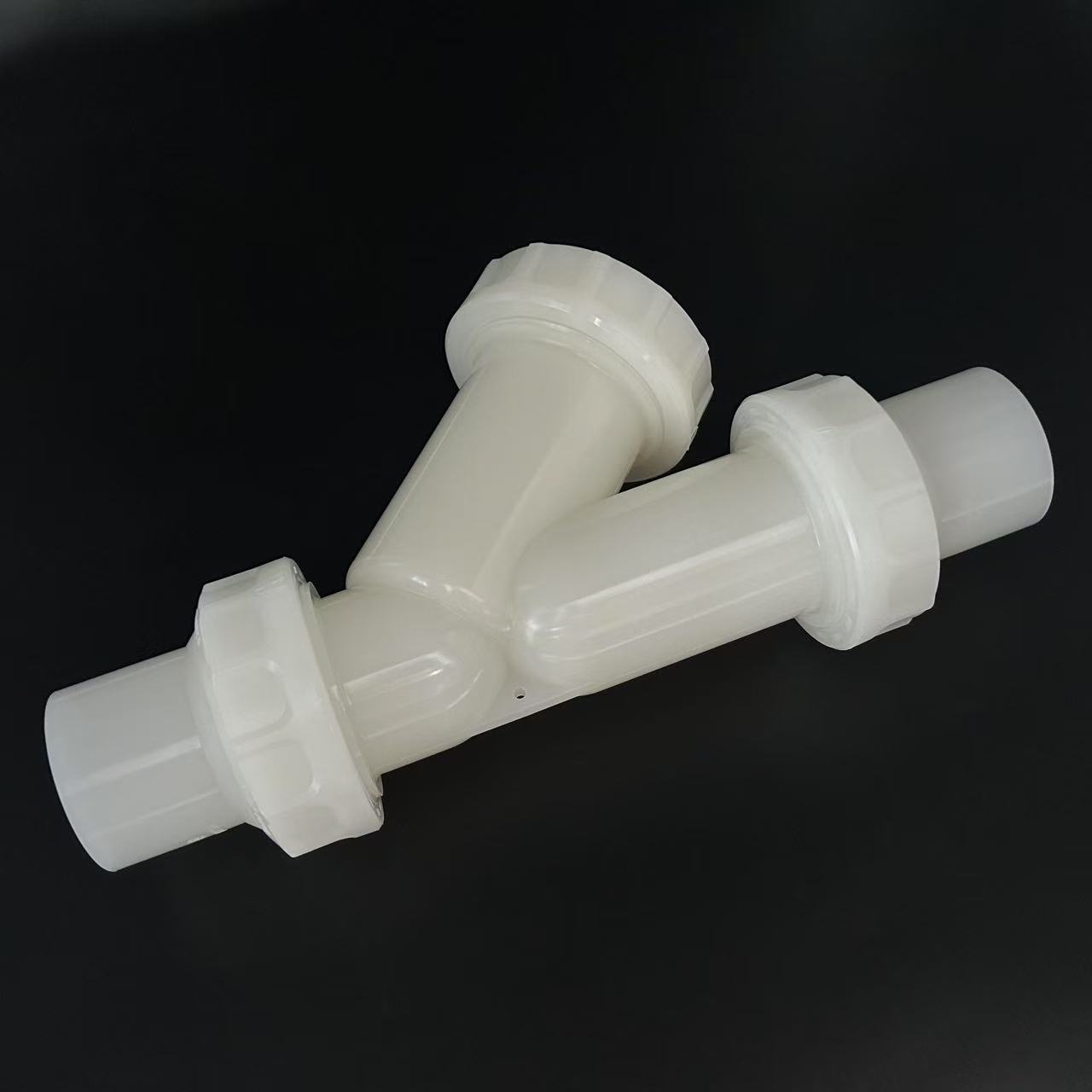

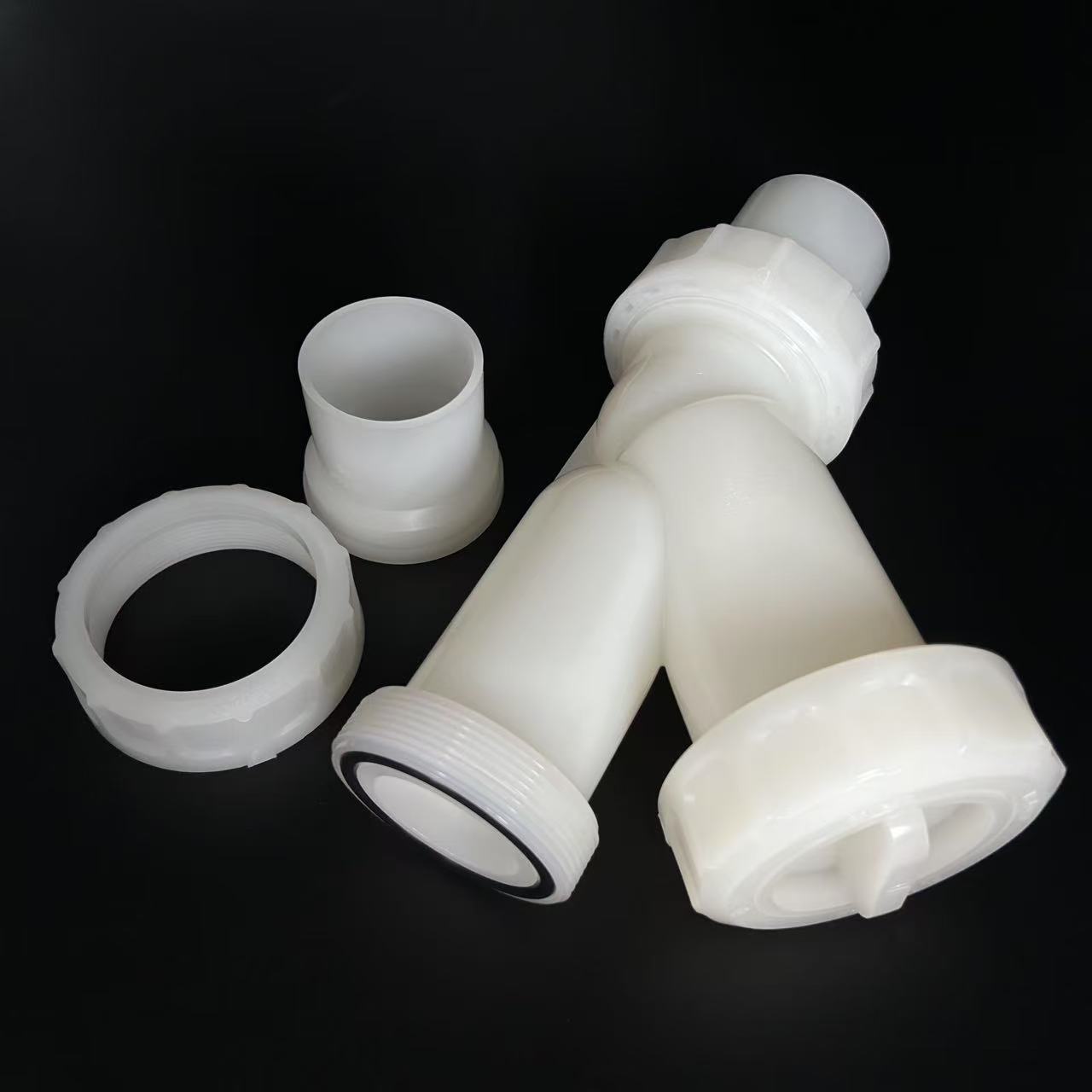

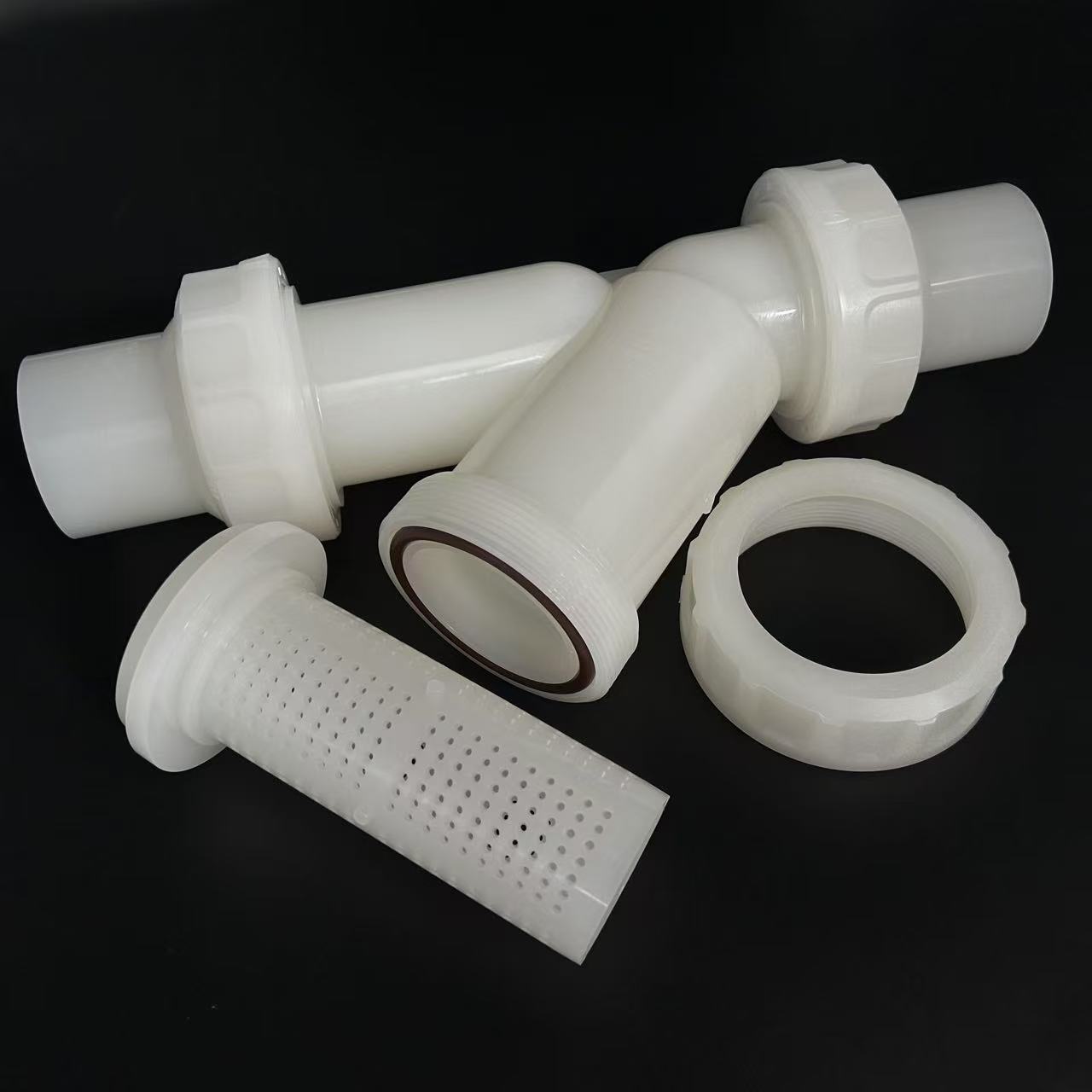

PVDF Y strainer

I. Core Performance Parameters

1. Temperature Resistance Range:

• -40℃ ~ 120℃ (Short-term tolerance up to 150℃)

2. Working Pressure:

• ≤ 1.0 MPa (PN10 Standard)

3. Filtration Accuracy:

• Coarse Filtration: 100–500 μm (For pump/valve protection)

• Precision Filtration: 20–100 μm (For process media purification)

4. Chemical Resistance:

• Withstands highly corrosive fluids including:
  Hydrofluoric Acid (HF), Hydrochloric Acid (HCl), Nitric Acid (HNO₃).

II. Core Application Scenarios

1. Electronics & Semiconductors:

• Ultrapure water production, Etching solution filtration

2. Chemical Industry:

• Sulfuric acid/HCl transfer pipelines, Solvent recovery systems

3. Environmental Water Treatment:

• Electroplating wastewater, Pickling solution pretreatment

4. Biopharmaceuticals:

• Water for Injection (WFI), Culture media impurity removal

III

. Key Selection Factors

1. Flow Rate Matching:

• Select pipe diameter (DN15–DN200) with recommended flow velocity: 1–3 m/s.

2. Accuracy Requirements:

• Pump protection → 300–500 μm

• Precision instruments → 50–100 μm

3. Pressure Drop Calculation:

• Initial pressure loss < 0.02 MPa;

• Cleaning required when clogging causes pressure rise > 0.1 MPa.
