In the realm of fluid handling systems, the choice of components directly impacts efficiency, durability, and safety. Among the critical elements ensuring seamless operation is the PPH bulkhead union—a specialized fitting designed to connect pipes through a partition, wall, or bulkhead. This article explores the key features, applications, and benefits of PPH bulkhead unions, highlighting why they have become a preferred choice in various industrial and commercial settings.
What is a PPH Bulkhead Union?

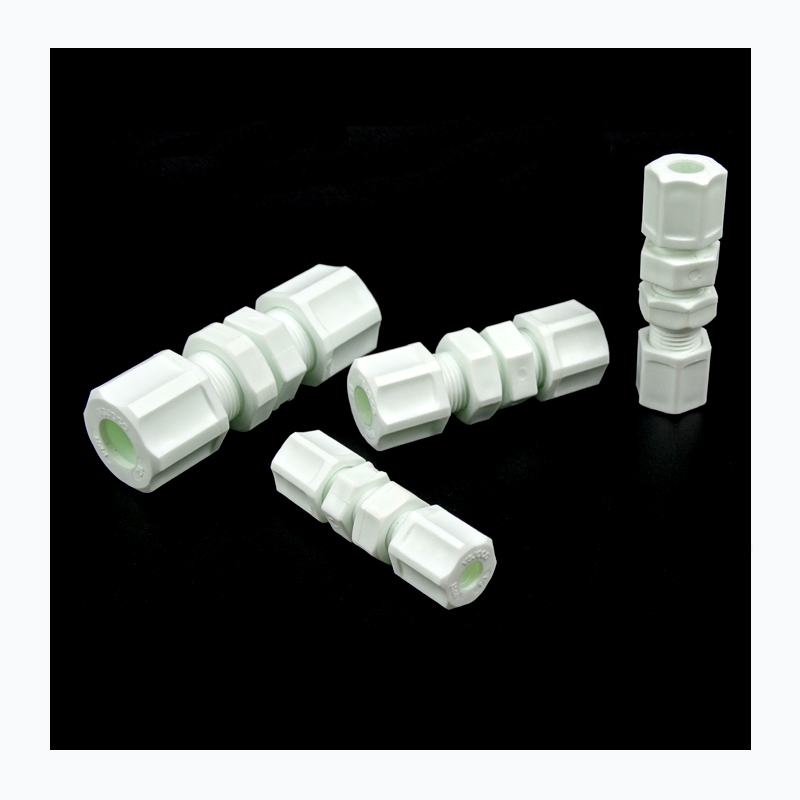

A PPH bulkhead union is a mechanical fitting crafted from Polypropylene Homopolymer (PPH), a high-performance thermoplastic known for its chemical resistance, mechanical strength, and thermal stability. Unlike standard pipe unions, which primarily connect two pipe ends in a straight line, a bulkhead union is engineered to create a secure, leak-proof connection through a barrier (such as a tank wall, panel, or partition).
Its design typically consists of two threaded ends—one on either side of the bulkhead—and a flange or nut that tightens against the barrier, ensuring a firm seal. This structure allows fluid or gas to flow through the partition while maintaining structural integrity and preventing leaks.
Key Features of PPH Bulkhead Unions
Material Excellence: PPH AdvantagesPPH (Polypropylene Homopolymer) is the cornerstone of these unions, offering:
Chemical Resistance: Resists corrosion from acids, alkalis, solvents, and many industrial chemicals, making it ideal for aggressive fluid environments.
Thermal Stability: Withstands a wide temperature range (-10°C to 95°C for continuous use), suitable for both hot and cold fluid applications.
Mechanical Strength: High tensile strength and impact resistance, ensuring durability under pressure and mechanical stress.
Lightweight: Significantly lighter than metal alternatives (e.g., stainless steel), reducing installation effort and structural load.
Low Maintenance: Non-toxic, non-staining, and easy to clean, with minimal risk of scaling or bacterial growth.
Leak-Proof DesignEquipped with precision threading and gasket seals (often made from EPDM or Viton for enhanced compatibility), PPH bulkhead unions create a tight seal that prevents leaks even under varying pressure conditions. The flange or compression nut distributes pressure evenly across the bulkhead, avoiding damage to the barrier material.
