Introduction
Cryogenic temperatures—typically defined as below -150°C (-238°F)—are challenging for materials in terms of both physical properties and chemical behavior. In industries like aerospace, cryogenics, and medical fields, where precise temperature control is crucial, the materials chosen must maintain performance even in the harshest conditions. PFA tubes, with their unique chemical structure, have gained significant traction in various applications, but their suitability for cryogenic conditions warrants deeper exploration. In this article, we will discuss the capabilities of PFA tubes under cryogenic temperatures, evaluate their performance, and compare them to alternative materials used in these demanding environments.
What Are Cryogenic Temperatures and Why Are They Important?
Before delving into PFA tube performance, it’s important to understand what constitutes cryogenic temperatures and why materials are affected by them. Cryogenic temperatures are typically considered to be below -150°C, with certain definitions extending this range down to -200°C or lower. At these temperatures, the behavior of materials changes significantly due to factors such as reduced molecular motion and altered material properties.
For example, many plastics and polymers become brittle at cryogenic temperatures, which can lead to cracking, failure, or deformation when exposed to stress or pressure. This is why selecting the right material for cryogenic applications is crucial for ensuring both performance and safety.

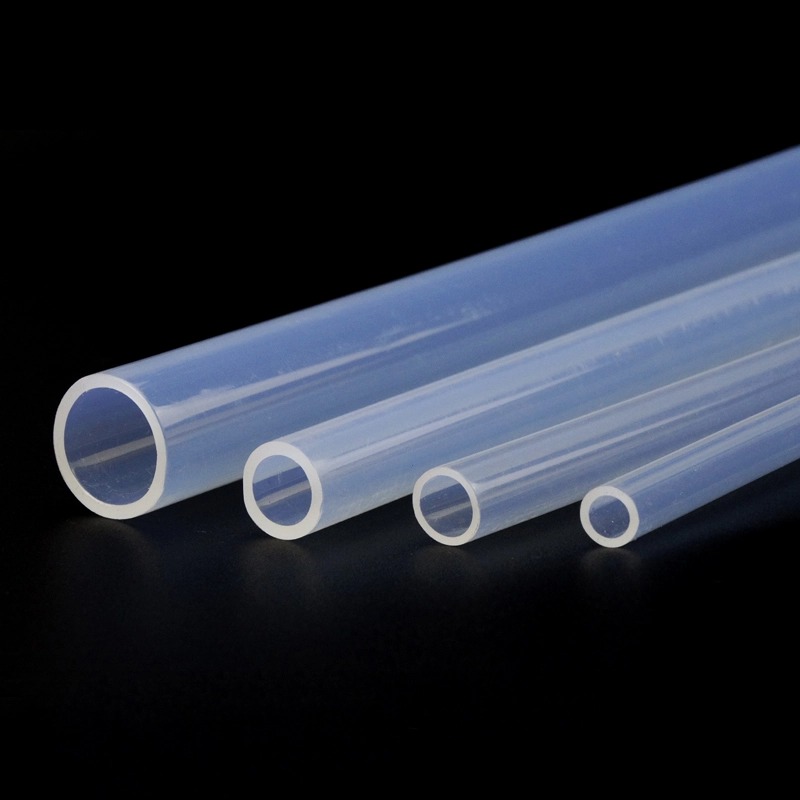

PFA Tubes and Their Chemical Composition
PFA, or perfluoroalkoxy, is a type of fluoropolymer similar to PTFE (polytetrafluoroethylene) but with additional chemical modifications that provide improved processing properties and greater flexibility. The molecular structure of PFA consists of a chain of carbon atoms surrounded by fluorine atoms, creating a highly stable and inert material. This gives PFA tubes excellent chemical resistance, electrical insulation properties, and a high level of thermal stability.
While PFA tubes are commonly used in a range of applications, including chemical processing, semiconductor manufacturing, and laboratory equipment, it’s essential to determine how their material properties stand up to extreme cold conditions.
Can PFA Tubes Withstand Cryogenic Temperatures?
The core question is whether PFA tubes are capable of withstanding the challenges posed by cryogenic temperatures. To answer this, we need to consider their mechanical and physical properties, such as tensile strength, flexibility, and brittleness at low temperatures.
PFA’s Flexibility at Low Temperatures
One of the most significant concerns when selecting materials for cryogenic applications is their flexibility. Many plastics become rigid and brittle at low temperatures, which can lead to cracks or breakage under stress. PFA, however, is known for retaining its flexibility even at temperatures as low as -200°C (-328°F). This makes it an ideal candidate for applications that involve cryogenic fluids or environments, where the material may be subjected to physical stress, bending, or expansion.
Tensile Strength and Resistance to Fracture
At cryogenic temperatures, many materials experience a loss of tensile strength, meaning they become less resistant to stretching and deformation. PFA, in contrast, maintains a high tensile strength even at temperatures well below freezing, making it resistant to fracture and breakage. This is particularly important in applications where the PFA tubes are under mechanical stress, such as in cryogenic tanks, pumps, or pipelines.
Thermal Conductivity and Insulation Properties
Another critical aspect of cryogenic environments is thermal conductivity. The ability of a material to insulate against temperature changes can be vital in preventing heat transfer to or from cryogenic fluids. PFA tubes have excellent insulating properties, meaning they can help maintain the temperature of cryogenic substances within specified limits. This is why PFA is commonly used in fluid transport systems where cryogenic fluids need to be contained or transported without significant loss of temperature.

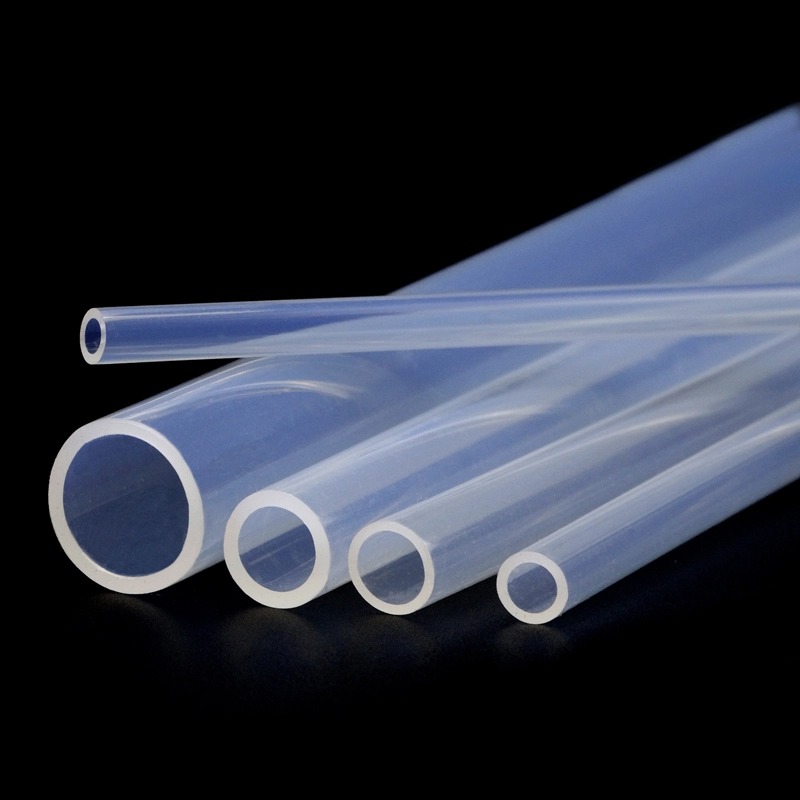

PFA Tube Performance at Ultra-Low Temperatures
In practical terms, PFA tubes have demonstrated excellent performance in many ultra-low temperature environments. They are commonly used in industries such as aerospace, liquefied natural gas (LNG) transport, and medical cryogenics. PFA tubes can safely withstand temperatures as low as -200°C (-328°F) without significant degradation in their mechanical properties. This makes them a reliable choice for long-term use in cryogenic applications.
Advantages of Using PFA Tubes in Cryogenic Applications
When it comes to choosing materials for cryogenic applications, PFA tubes offer a number of advantages over other alternatives such as polyethylene, PVC, and even stainless steel. Below are some of the key benefits of using PFA tubes in cryogenic environments.
1. Superior Chemical Resistance
PFA tubes excel in their resistance to a wide range of chemicals, including strong acids, bases, and solvents, which are often used in cryogenic processing. This makes them ideal for applications where chemical corrosion could be a concern, such as in the storage and transport of cryogenic gases or liquefied gases.
2. Minimal Brittleness and Long-Term Durability
While many materials lose their durability and become brittle over time when exposed to cryogenic conditions, PFA retains its structural integrity. Its resistance to cracking and degradation at low temperatures ensures that PFA tubes can perform reliably over extended periods without requiring frequent replacement.
3. High Resistance to Stress Cracking
In environments where pressure changes can be frequent, materials like plastics are prone to stress cracking. PFA is highly resistant to this type of damage, further extending its suitability for use in cryogenic systems where pressure fluctuations are common.
PFA Tubes vs. Other Materials for Cryogenic Use
When evaluating the suitability of PFA tubes for cryogenic temperatures, it’s important to compare them with other materials that are commonly used in similar applications.
PFA Tubes vs. PTFE Tubes
Both PFA and PTFE are fluoropolymers, but they differ in processing and mechanical properties. While PTFE is known for its extreme chemical resistance and non-stick properties, PFA is more flexible and easier to process into tubes and other shapes. PTFE, however, becomes more brittle at lower temperatures compared to PFA. For cryogenic temperatures, PFA offers superior performance due to its increased flexibility and resistance to breaking under stress.
PFA Tubes vs. Stainless Steel
Stainless steel is a common material in cryogenic systems due to its strength and durability. However, it lacks the chemical resistance and flexibility that PFA offers. Stainless steel is also a much heavier material, making it less desirable for applications where weight reduction is important, such as in aerospace or medical equipment.
Applications of PFA Tubes in Cryogenics
PFA tubes are widely used in a variety of cryogenic applications due to their unique properties. Some of the most notable applications include:
Cryogenic Fluid Transfer: PFA tubes are used to transfer cryogenic gases such as liquid nitrogen, oxygen, and LNG due to their excellent resistance to low temperatures and chemical corrosion.
Cryogenic Insulation: PFA tubes are often used as insulation for cryogenic pipelines, helping to maintain the desired temperature of the fluids being transported.
Cryogenic Medical Equipment: In medical fields, PFA tubes are used for cryosurgery, drug storage, and in cryogenic preservation systems for biological samples.
Conclusion
PFA tubes are highly effective in handling cryogenic temperatures. Their flexibility, high tensile strength, and resistance to brittleness make them an excellent choice for environments where low temperatures and mechanical stress are prevalent. Additionally, their superior chemical resistance and long-term durability further enhance their suitability for cryogenic applications. Compared to other materials, PFA tubes provide a combination of properties that are unmatched in many cryogenic environments, making them an indispensable part of industries that require reliable and durable performance at ultra-low temperatures.
FAQ
1、Can PFA tubes be used for cryogenic liquid storage?
Yes, PFA tubes are commonly used for the storage and transport of cryogenic liquids due to their excellent thermal insulation properties and ability to withstand extreme low temperatures.
2、How does PFA compare to other materials like PVC or HDPE in cryogenic conditions?
Unlike PVC and HDPE, which can become brittle and crack at low temperatures, PFA maintains its flexibility and strength, making it a much more reliable option for cryogenic applications.
3、What are the maximum temperatures PFA tubes can withstand?
PFA tubes can typically withstand temperatures ranging from -200°C (-328°F) to 260°C (500°F), making them suitable for a wide range of industrial applications, including cryogenics.
