VSJOCO

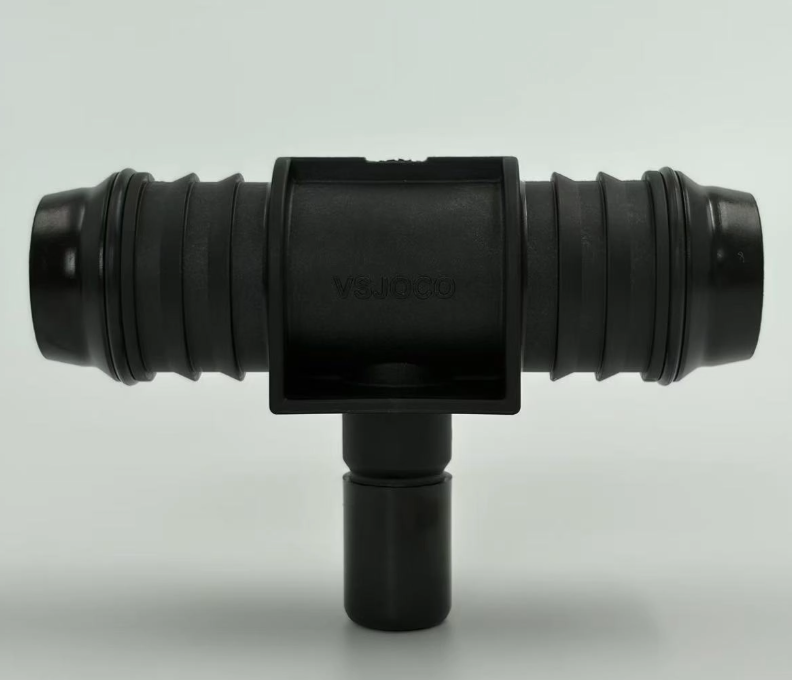

Manufactured from high-grade reinforced polyamide 66 (PA66) resin, our PA66 Reducing Male Tee delivers exceptional mechanical strength, dimensional stability, and long-term connection reliability, making it the go-to choice for industrial clients requiring robust, leak-resistant branch connections in variable-diameter piping networks. The male-threaded reducing design enables seamless integration between pipes of different nominal sizes, eliminating the need for multiple adapters and simplifying piping system layout for industrial installations.
Formulated with reinforced PA66 material, our PA66 Reducing Tee exhibits outstanding tensile strength, creep resistance, and impact toughness, even under continuous vibration and fluctuating pressure conditions. It outperforms standard plastic pipe fittings in high-stress industrial environments, with minimal deformation over extended service life, reducing the risk of joint failure and costly system downtime.
The variable-diameter branch configuration is precision-machined to maintain smooth internal flow paths, minimizing turbulence and pressure drop across the tee joint. This design ensures consistent fluid distribution between the main line and branch line, optimizing the efficiency of industrial pneumatic and hydraulic piping systems. The male-threaded ends are manufactured to strict tolerance standards, ensuring universal compatibility with standard female-threaded piping components.
Our high-grade PA66 material delivers excellent resistance to oils, greases, hydraulic fluids, and most neutral chemical media, making it suitable for a wide range of industrial operating environments. It also offers reliable heat resistance, with a continuous operating temperature range from -30℃ to 120℃, maintaining stable performance in both cold and warm industrial settings.
Parameter | Specification |
|---|---|
Fitting Type | Reducing Male Branch Tee |
Body Material | Reinforced Virgin PA66 |
Connection Type | Male BSPT / NPT Thread |
Nominal Size Range | DN8 – DN50 (1/4” – 2”) |
Maximum Operating Pressure | 10 bar @ 20℃ |
Operating Temperature Range | -30℃ to 120℃ |
Thread Standard | ISO 7-1, ANSI B1.20.1 |
Reducing Ratio | Up to 2:1 (Main Line to Branch Line) |
Color | Black / Natural (Customizable) |
Our Variable PA66 Reducing Tee Male Pipe Joints solve complex piping connection challenges across diverse industrial sectors:
Pneumatic Control Systems: Branch connections in automated manufacturing and assembly line pneumatic circuits
Hydraulic Fluid Transfer: Low-pressure hydraulic lines in material handling equipment and industrial machinery
Automotive Manufacturing: Fluid distribution lines in vehicle assembly plants and component testing systems
Industrial Water Treatment: Branch lines in water filtration, chemical dosing, and cooling water systems
Commercial Agricultural Irrigation: High-flow irrigation piping networks for large-scale growing operations
We cater to the unique needs of industrial clients with full customization capabilities for our PA66 Reducing Male Tee. Available custom options include non-standard reducing ratios, specialized thread types, custom color coding for system identification, and reinforced material formulations for extreme operating conditions. For bulk procurement buyers, industrial project contractors, and system integrators, we offer competitive tiered pricing, flexible production lead times, dedicated account management, and full quality documentation for every batch. We accommodate both small-batch custom orders and large-volume production runs to align with your project timeline and scale requirements.
Yes. Our reinforced PA66 material is highly compatible with most mineral-based hydraulic fluids, synthetic hydraulic oils, and lubricating greases, making it ideal for industrial hydraulic system applications.
Standard bulk orders have a lead time of 10–15 working days; customized orders require 20–25 working days, adjusted based on volume and complexity.
Whether you are sourcing fittings for a new industrial piping project, retrofitting an existing pneumatic system, or placing a large bulk procurement order, VSJOCO is your trusted partner for high-quality PA66 pipe connection solutions. Submit your project specifications, required quantity, and customization details today, and our experienced technical sales team will deliver a tailored, no-obligation quote within 24 working hours.
