Product Overview

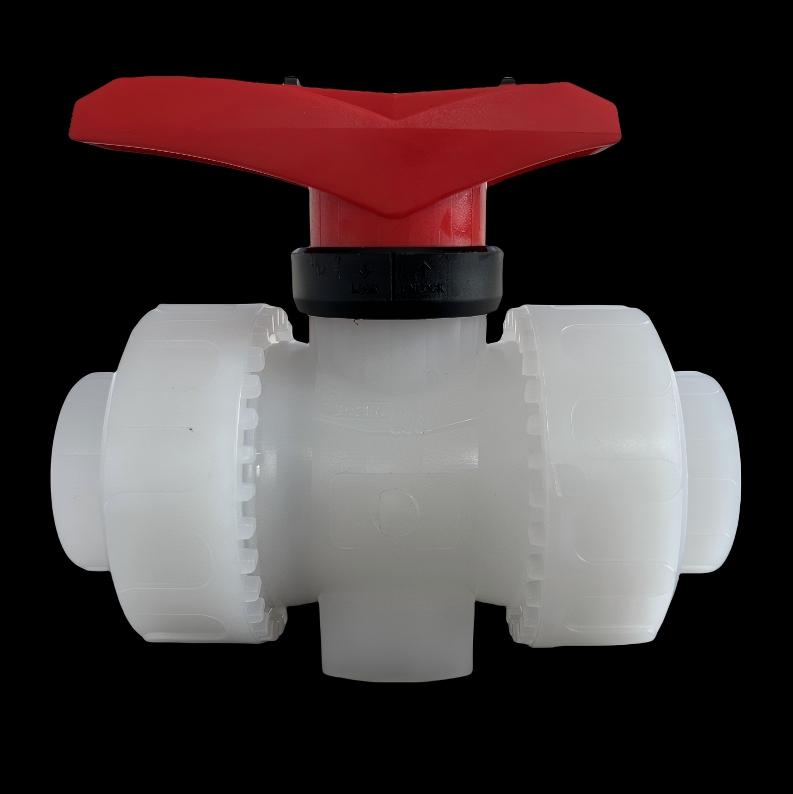

Socket Weld PVDF Ball Valves combine polyvinylidene fluoride's exceptional chemical resistance with reliable welded connections, making them ideal for corrosive and high-purity applications in semiconductor, chemical, and pharmaceutical industries.
Key Features
Excellent Corrosion Resistance: Withstands strong acids, bases, and solvents
High Purity: Non-contaminating for ultra-pure water systems
Leak-proof Design: Socket weld ensures permanent, secure connections
Durable Performance: PVDF material offers strong mechanical properties
Temperature Range: -20°C to 150°C
Technical Specifications
Sizes: ½" to 4" (DN15-DN100)
Pressure Rating: PN10 (1.0 MPa)
Connection: Socket Weld
Seat Material: PTFE
Seal Options: EPDM/FPM
Applications
Semiconductor: Ultra-pure water, CMP slurries
Chemical Processing: Acids, solvents, transfer lines
Pharmaceutical: WFI systems, CIP processes
Water Treatment: Corrosive wastewater handling
Installation Notes
Ensure clean, square pipe cuts
Proper welding procedures prevent material damage
Minimal maintenance required due to PVDF's durability
