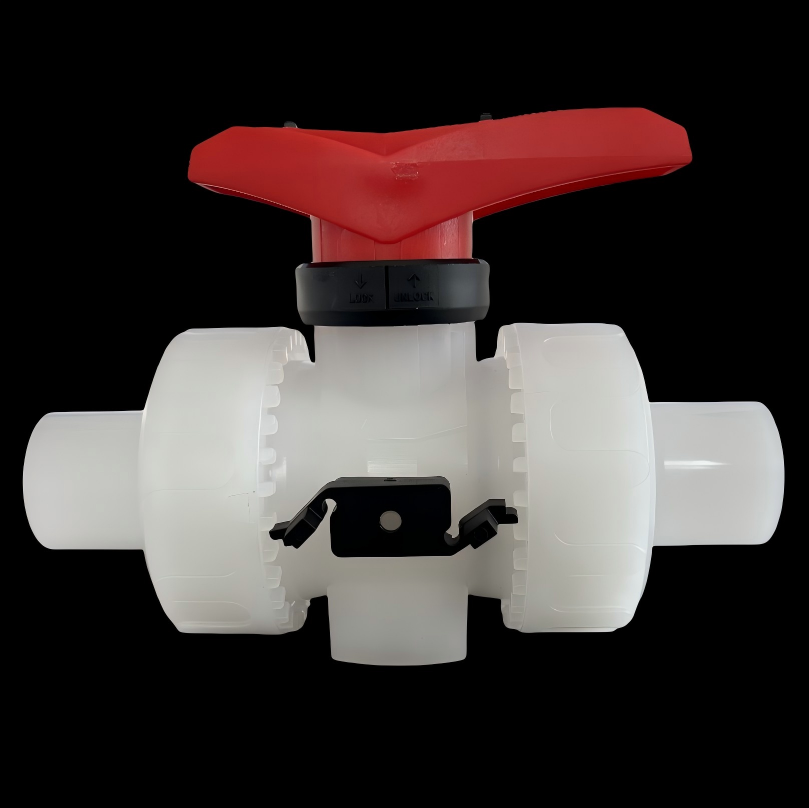

What is a Butt-Weld PVDF Ball Valve?

A Butt-Weld PVDF Ball Valve is a type of industrial valve constructed from Polyvinylidene Fluoride (PVDF), a high-performance thermoplastic. The "butt-weld" refers to its connection method: the valve ends are designed to be seamlessly welded directly to the pipeline using a thermal welding process.

The valve's core component is a spherical disc (the ball) with a bore through it. By rotating the ball a quarter-turn (90 degrees), the flow can be opened or closed, providing quick and reliable flow control.

photobank(1)

Key Features and Advantages

  1. Exceptional Chemical Resistance:
    PVDF is renowned for its outstanding resistance to a wide range of harsh chemicals, including strong acids, halogens, oxidants, and hydrocarbons. This makes it an ideal choice for the chemical processing, semiconductor, and pharmaceutical industries.

  2. High Purity and Low Contamination:
    The non-stick surface and inert nature of PVDF prevent fluid contamination, leaching, or absorption. This is paramount in industries like biotechnology, food and beverage, and ultrapure water systems where product purity is non-negotiable.

  3. Robust, Leak-Free Connection:
    The butt-weld connection creates a permanent, homogeneous, and full-strength joint that is as strong as the pipe itself. This eliminates potential leak points associated with threaded or flanged connections, ensuring maximum system integrity.

  4. Excellent Mechanical Strength and Durability:
    PVDF offers high tensile strength, impact resistance, and excellent fatigue resistance, even under cyclic loading conditions. It can withstand significant pressure and mechanical stress.

  5. Superior Weathering and UV Resistance:
    Unlike many other plastics, PVDF has excellent resistance to weathering and ultraviolet radiation, making it suitable for both indoor and outdoor applications without degradation.

  6. Smooth Bore and Low Pressure Drop:
    The smooth internal surface of the valve minimizes turbulence and pressure loss, ensuring efficient fluid flow and reducing energy consumption.

Ideal Applications

Butt-Weld PVDF Ball Valves are deployed across numerous critical industries:

  • Chemical Processing: Handling aggressive acids, alkalis, and solvents.

  • Pharmaceutical and Biotech: For purified water (WFI, PW), clean-in-place (CIP) systems, and process fluids.

  • Semiconductor Manufacturing: In ultra-pure water and high-purity chemical distribution.

  • Water Treatment: For handling corrosive chemicals like chlorine, bromine, and ozone.

  • Food and Beverage: Where hygiene, cleanliness, and non-toxicity are essential.

Why Choose the Butt-Weld Design?

While PVDF valves are available in threaded and socket-weld variants, the butt-weld design is preferred for the most demanding applications. It provides:

  • Zero Dead Legs: When installed correctly, the connection is perfectly smooth and flush with the pipe, eliminating areas where fluid can stagnate and bacteria grow.

  • Structural Integrity: The welded joint is monolithic, offering superior resistance to vibration, shock, and thermal expansion.

  • Cost-Effectiveness: Over the long term, the elimination of gaskets and the reduced maintenance due to leak-free performance lead to lower total cost of ownership.

Conclusion

For engineers and specifiers designing systems that demand the ultimate in corrosion resistance, purity, and reliability, the Butt-Weld PVDF Ball Valve is an outstanding choice. Its combination of PVDF's superior material properties with the strength and integrity of a welded connection creates a valve solution that ensures safe, efficient, and long-lasting operation in the world's most challenging environments.
