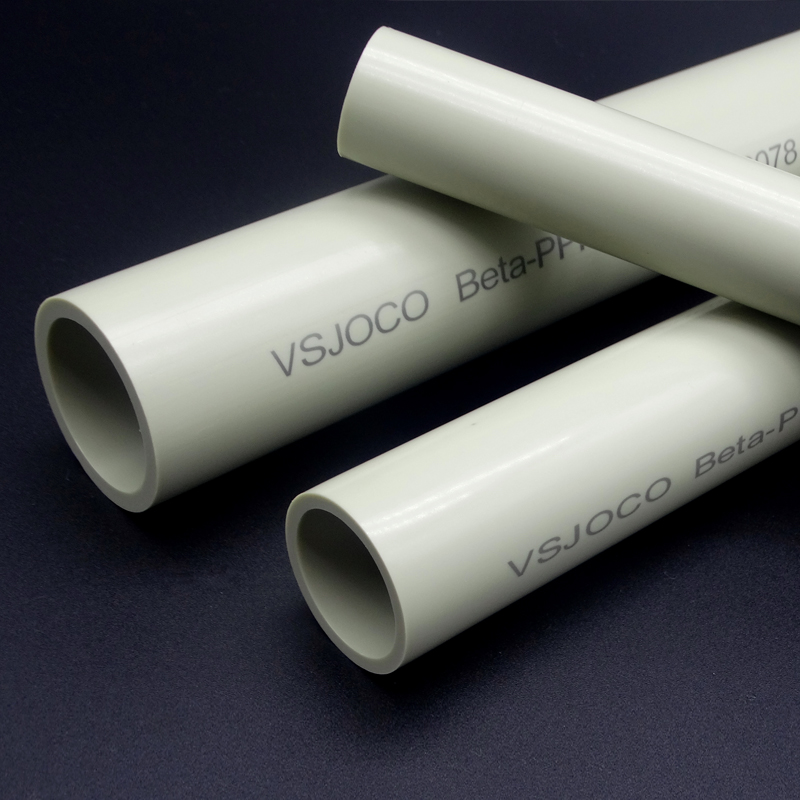

PPH pipe
Butt welding PPH pipe 代码 Cod PN 10
| Butt welding PPH pipe | |||||
| PN 10 | |||||
| 外径(OD) [mm] | 代码 Code | 压力(P) PN | 重量(Wt) kg | Wall thickness e[mm] | 内径(ID) [mm] |
| 16 | 555130104 | 10 | 0.080 | 1.8 | 12.4 |
| 20 | 555130105 | 10 | 0.107 | 2.0 | 16.0 |
| 25 | 555130106 | 10 | 0.164 | 2.3 | 20.4 |
| 32 | 555130107 | 10 | 0.267 | 2.9 | 26.2 |
| 40 | 555130108 | 10 | 0.412 | 3.7 | 32.6 |
| 50 | 555130109 | 10 | 0.538 | 4.6 | 40.8 |
| 63 | 555130110 | 10 | 1.010 | 5.8 | 51.4 |
| 75 | 555130111 | 10 | 1.420 | 6.8 | 61.4 |
| 90 | 555130112 | 10 | 2.030 | 8.2 | 73.6 |
| 110 | 555130113 | 10 | 3.010 | 10.0 | 90.0 |
| 125 | 555130114 | 10 | 3.910 | 11.4 | 102.2 |
| 140 | 555130115 | 10 | 4.900 | 12.7 | 114.6 |
| 160 | 555130116 | 10 | 6.390 | 14.6 | 130.8 |
| 180 | 555130117 | 10 | 8.070 | 16.4 | 147.2 |
| 200 | 555130118 | 10 | 9.950 | 18.2 | 163.6 |
| 225 | 555130119 | 10 | 12.600 | 20.5 | 184.0 |
| 250 | 555130120 | 10 | 15.500 | 22.7 | 204.6 |
| 280 | 555130121 | 10 | 19.500 | 25.4 | 229.2 |
| 315 | 555130122 | 10 | 24.600 | 28.6 | 257.8 |
| 355 | 555130123 | 10 | 31.200 | 32.2 | 290.6 |
| 400 | 555130124 | 10 | 39.700 | 36.3 | 327.4 |
