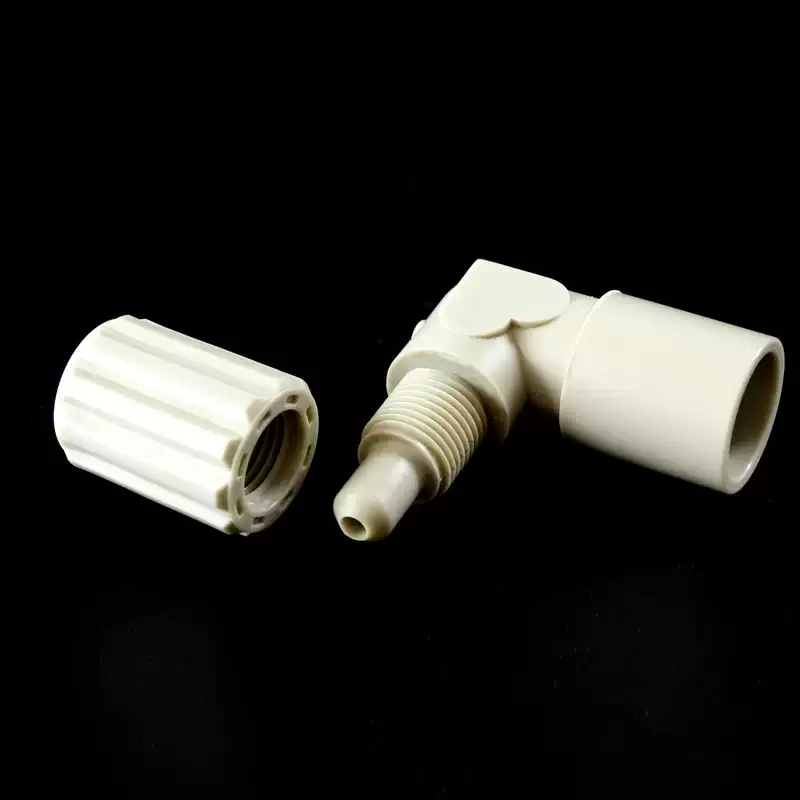

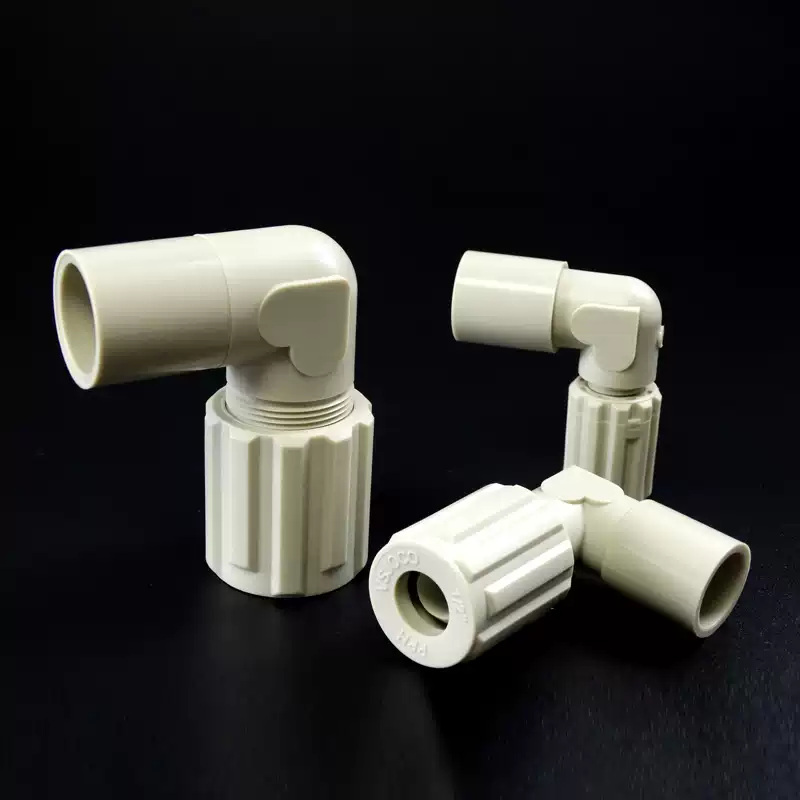

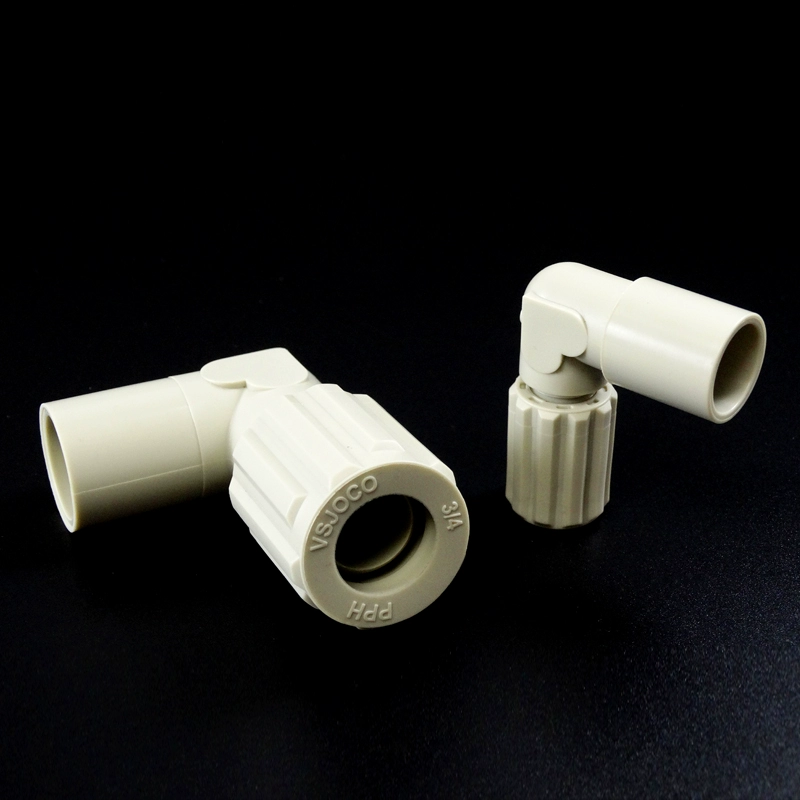

PPH Flared Elbow

Product Overview:

Specifically designed for harsh industrial environments, our PPH flared elbow is precision injection-molded using high-quality polypropylene homopolymer (PPH) material, offering exceptional high-temperature resistance, corrosion resistance, and chemical resistance. The unique flared flange design eliminates the need for additional seals, enabling quick, reliable, and leak-free pipe connections. It is an ideal pipe transition fitting for industries such as chemicals, electroplating, environmental water treatment, pharmaceuticals, and food processing.

Core Advantages and Features:

Top-tier Corrosion Resistance:

Made from premium PPH material, it exhibits outstanding resistance to strong acids, strong alkalis, organic solvents, and various chemical media, far surpassing ordinary PP materials and offering a longer service life.

Suitable for highly corrosive environments such as electroplating, acid washing, and chemical wastewater treatment.

Exceptional High-Temperature Resistance:

Can operate continuously at temperatures up to 90°C+ and withstand higher temperatures for short periods (please refer to specific specifications), meeting the requirements of most hot fluid transportation applications.

High heat deflection temperature ensures dimensional stability and connection reliability in high-temperature environments.

Revolutionary Flanged Connection Design:

Gasket-free sealing: The unique conical flared end face mates with a flat flange end, generating strong sealing force through bolt tightening, completely eliminating leakage risks, with sealing performance far exceeding traditional flange + gasket structures.

Easy and efficient installation: Eliminates the need to select and position gaskets, increasing installation speed by over 50%, significantly reducing labor costs and maintenance time.

Simple maintenance:

Easy and quick disassembly for inspection or replacement.

High mechanical strength and durability:

PPH material offers high rigidity and impact resistance, ensuring safe and stable operation of the pipeline system under pressure fluctuations and external impacts.

Excellent creep resistance ensures no deformation under long-term pressure, providing durable and reliable connections.

Superior fluid performance:

Smooth and flat inner walls minimize friction resistance, effectively reducing fluid conveyance pressure loss and improving system efficiency.

No scaling or contamination, meeting food-grade and pharmaceutical-grade clean pipeline requirements (optional certification available).

Typical application scenarios:

Chemical production process pipelines (acid, alkali, and solvent transportation)

Electroplating plants and surface treatment workshop tank liquid circulation systems

Environmental protection projects (wastewater treatment and exhaust gas treatment pipelines)

Pharmaceutical industry purified water and injectable water (WFI) systems

Food and beverage processing pipelines

Semiconductor wet process pipelines

Laboratory high-purity chemical reagent pipelines

Technical specifications reference:

Material: High-quality PPH (polypropylene homopolymer)

Connection method: Flanged expansion type (one end with an expanded conical surface, the other end with a flat flange)

Size Range (Common): DN20, DN25, DN32, DN40, DN50, DN63, DN75, DN90, DN110, DN160 (custom sizes available)

Pressure Rating: PN6, PN10, PN16 (selectable based on size)

Temperature Range: -20°C to +90°C (short-term higher temperatures possible, please inquire)

Standards: Compliant with DIN, ISO, or other relevant industrial standards

Available Colors: Gray, green, or others (as required)

Why choose our PPH flared elbows?

Source strength: Specializing in the production of high-quality plastic fittings, strictly controlling raw materials and processes.

Performance guarantee: Excellent chemical resistance and temperature resistance, durable, reducing total cost of ownership.

Installation revolution: The flared design significantly improves installation efficiency and sealing reliability, reducing maintenance.

Wide applicability: Comprehensive specifications cover mainstream industrial application requirements.

Quality certification: Provides quality assurance compliant with industry standards (specific certifications such as ISO can be mentioned).

Upgrade your piping system now! Choose this high-performance, high-reliability PPH flared elbow to provide a safe, efficient, and durable turning connection solution for your fluid conveyance. Enhance system reliability, reduce operational costs, and start with every high-quality connection point!
