Nylon Tube Fittings: A Quick Guide

What They Are

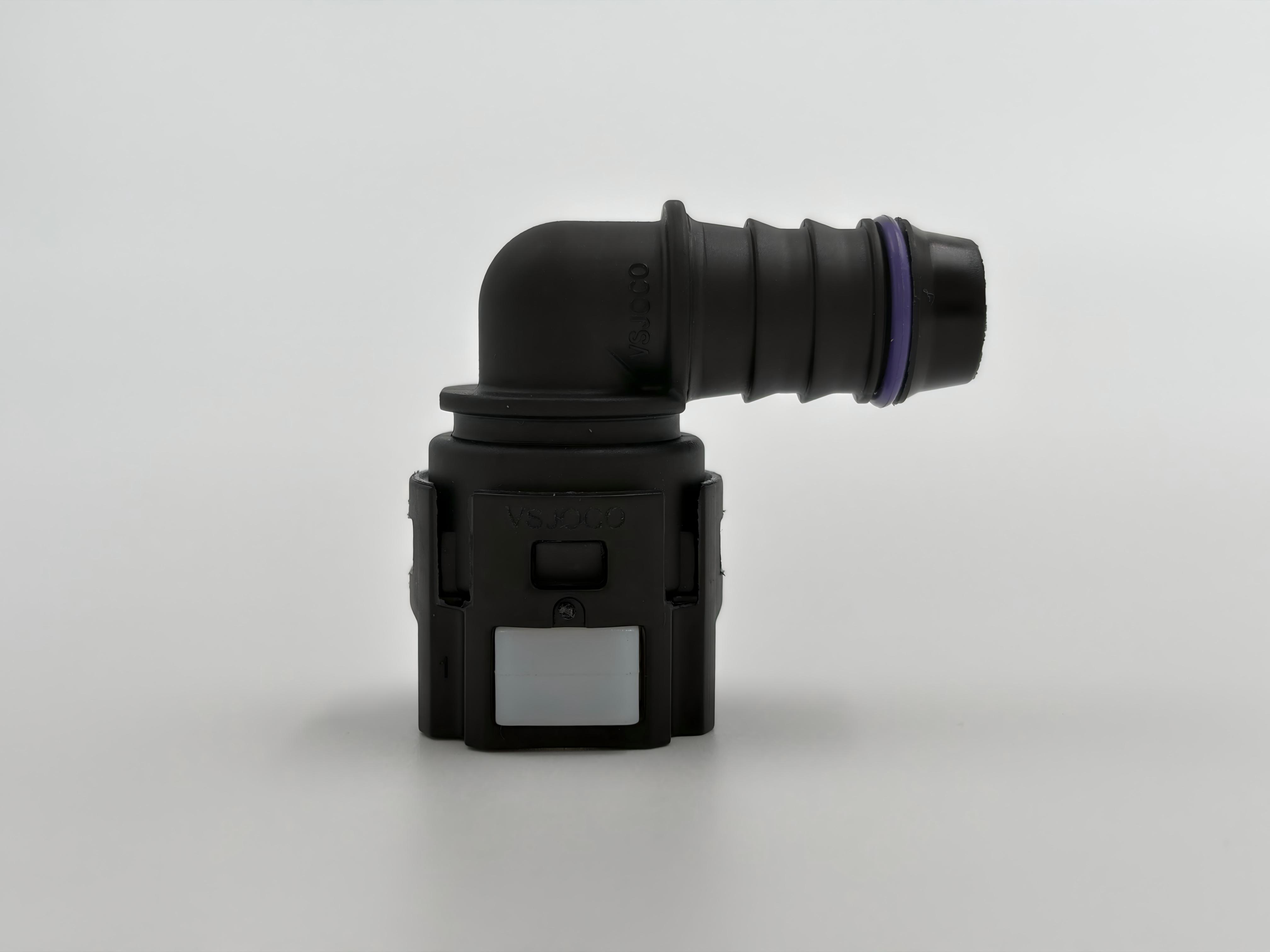

Nylon tube fittings are lightweight, durable connectors used with nylon tubing to create secure, leak-free seals in fluid and pneumatic systems.

Key Advantages

• Light & Strong: Lighter than metal but highly durable.

• Corrosion Resistant: Ideal for harsh environments and exposure to chemicals, fuels, and moisture.

• Cost-Effective: Delivers high performance at a lower cost than metal alternatives.

• Easy to Install: Many types allow for quick, tool-free assembly.

• Versatile: Safe for use in electrical and explosive atmospheres (non-conductive, non-sparking).

Common Types

• Push-to-Connect: For fastest, tool-free installation.

• Compression Fittings: Provide a strong, reliable seal via a compression nut and ferrule.

• Barbed Fittings: Use barbs and clamps for a secure grip on softer tubing.

• Threaded Fittings: (e.g., NPT, BSPP) for connecting to standard threaded ports.

Choosing the Right Fitting
Select based on:

1. System Pressure & Temperature: Ensure ratings exceed your system's maximum.

2. Media Compatibility: Confirm the nylon grade is resistant to the fluid or gas used.

3. Tubing Size: Precisely match the fitting's size to your tubing's outer diameter.

4. Connection Type: Decide between quick-connect (push-to-connect) or more permanent (compression) styles.

5. Environment: Consider exposure to UV, chemicals, or physical impact.

Applications
Widely used in automotive (fuel, brake lines), factory automation, compressed air systems, and low-pressure hydraulics.

In Summary
Nylon tube fittings are a reliable, economical, and versatile solution for modern fluid power systems, balancing ease of use with robust performance.
