What Are PVDF Pipe And Fittings

Views: 0     Author: Site Editor     Publish Time: 2025-06-25      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

Polyvinylidene fluoride (PVDF) is a highly non-reactive and pure thermoplastic fluoropolymer. Due to its exceptional chemical resistance and physical properties, PVDF has become a material of choice in various industrial applications, especially in the manufacturing of pipes and fittings. These PVDF pipes are integral components in systems that demand high purity, mechanical strength, and resistance to harsh chemicals.

Understanding the characteristics and applications of PVDF pipes and fittings is crucial for engineers and industry professionals who aim to optimize system performance while ensuring safety and compliance with regulatory standards. This article provides an in-depth analysis of PVDF pipe and fittings, exploring their properties, types, manufacturing processes, applications, and advantages over other materials.

Properties of PVDF Material

PVDF is renowned for its remarkable combination of physical and chemical properties. It exhibits high tensile strength, excellent thermal stability, and outstanding resistance to chemicals and ultraviolet (UV) radiation. These properties make it an ideal material for piping systems exposed to aggressive chemicals and demanding environmental conditions.

Chemical Resistance

One of the most significant attributes of PVDF is its superior chemical resistance. It can withstand exposure to a wide range of corrosive substances, including strong acids, bases, halogens, and organic solvents. This resistance is due to the strong carbon-fluorine bonds within its molecular structure, which provide high stability and inertness.

In chemical processing industries, PVDF piping systems can handle aggressive media without degrading, thereby reducing maintenance requirements and prolonging system life. The material's resistance to permeation and leaching also ensures the purity of the conveyed fluids, which is critical in applications like semiconductor manufacturing and pharmaceuticals.

Thermal Stability

PVDF maintains its mechanical properties over a wide temperature range, typically from -40°C to 150°C. Its high melting point of around 177°C allows it to perform effectively in high-temperature applications where other plastics might fail. This thermal stability ensures consistent performance and structural integrity under fluctuating temperature conditions.

Mechanical Strength

With a high strength-to-weight ratio, PVDF pipes and fittings offer mechanical robustness while remaining relatively lightweight. The material exhibits excellent impact resistance and can absorb mechanical shocks without cracking or deforming. This property is essential in industrial environments where mechanical stresses and vibrations are common.

UV and Weather Resistance

PVDF's resistance to UV radiation and weathering makes it suitable for outdoor applications. Unlike some plastics that degrade when exposed to sunlight, PVDF retains its properties, ensuring longevity and reducing the need for protective coatings or frequent replacements.

Manufacturing Processes of PVDF Pipes and Fittings

The production of PVDF pipes and fittings involves several advanced manufacturing processes that ensure high quality and performance. The primary methods include extrusion for pipes and injection molding for fittings.

Extrusion of PVDF Pipes

In the extrusion process, PVDF resin pellets are melted and forced through a die to form pipes of various diameters and wall thicknesses. Precise control of temperature and pressure during extrusion is crucial to maintain the material's properties and ensure uniformity. The extruded pipes are then cooled and cut to the desired lengths.

Quality control measures, such as ultrasonic testing and dimensional inspections, are employed to detect any defects or inconsistencies. These measures ensure that the pipes meet industry standards and are free from imperfections that could compromise their performance.

Injection Molding of PVDF Fittings

Injection molding is used to produce PVDF fittings with complex geometries, such as elbows, tees, reducers, and connectors. The process involves injecting molten PVDF into precision molds, where it cools and solidifies into the desired shape. The molds are designed to tight tolerances to ensure the compatibility and interchangeability of fittings.

Post-molding processes may include machining and finishing operations to achieve the required surface smoothness and dimensional accuracy. This is particularly important for fittings used in high-purity applications, where surface imperfections could harbor contaminants.

Quality Assurance and Standards

Manufacturers adhere to strict quality assurance protocols to ensure that PVDF pipes and fittings meet or exceed industry standards. Compliance with standards such as ASTM D3222 for PVDF materials and ASTM F1673 for piping systems is essential. Third-party certifications and regular audits help maintain consistency and reliability in production.

Types of PVDF Pipe Fittings

PVDF pipe fittings are available in a wide range of types and configurations to accommodate various system designs and requirements. Understanding the different types helps in selecting the appropriate fittings for specific applications.

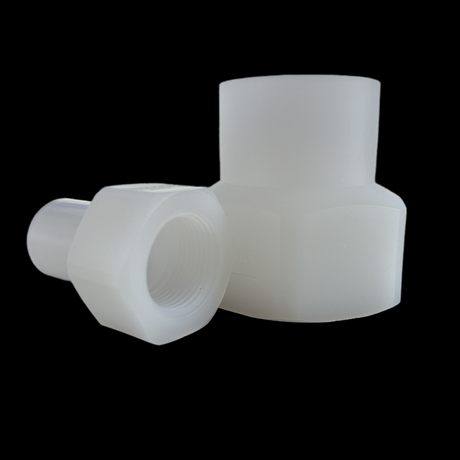

PVDF Female Connector

The PVDF female connector is designed to connect male-threaded components to the piping system. It features internal threads that match the external threads of the male fittings. The use of PVDF female connectors ensures a secure and leak-proof connection, which is essential in maintaining system integrity, especially in high-purity or corrosive environments.

These connectors often come with options for different thread standards, such as NPT or metric threads, allowing for compatibility with various equipment and international standards.

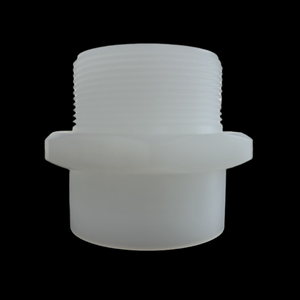

PVDF Male Connector

PVDF male connectors have external threads and are used to connect with female-threaded components. They provide the same level of chemical resistance and mechanical strength as other PVDF fittings, ensuring consistent performance across the piping system.

Elbows and Bends

Elbows and bends are essential for changing the direction of flow in a piping system. PVDF elbows are available in various angles, commonly 45° and 90°, to suit specific design requirements. These fittings are precision-molded to ensure smooth flow paths and minimize pressure drops or turbulence, which could affect system efficiency.

Tees and Crosses

Tees allow for branching of pipelines, enabling the distribution or collection of fluids in different sections of the system. Crosses provide a four-way connection, facilitating more complex network designs. PVDF tees and crosses maintain the same chemical resistance and mechanical properties as other fittings, ensuring system reliability.

Reducers and Adapters

Reducers are used to connect pipes of different diameters, allowing for changes in flow rates or system pressure. Adapters facilitate the connection between different types of fittings or materials. PVDF reducers and adapters are critical in customizing piping systems to meet specific operational requirements.

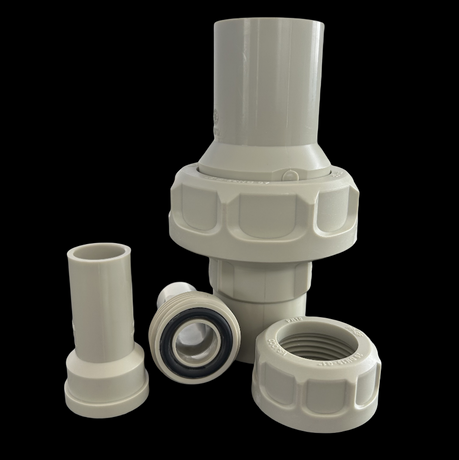

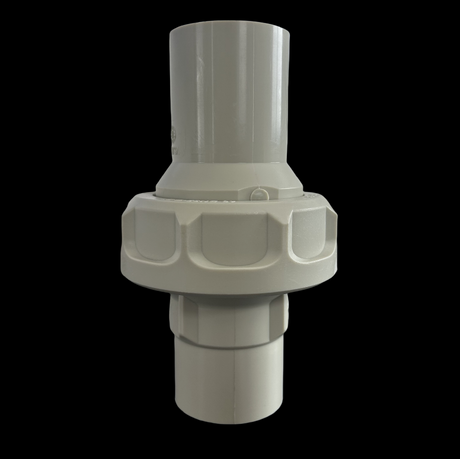

Unions and Flanges

Unions provide a convenient way to disassemble and reassemble sections of the piping system without cutting or welding. Flanges are used for connecting pipes, valves, and equipment, offering a secure and leak-proof joint. PVDF flanges are often used in conjunction with gaskets and fasteners made from compatible materials to maintain chemical resistance.

Applications of PVDF Pipes and Fittings

The unique properties of PVDF make it suitable for a wide array of applications across various industries. Its use enhances system performance, safety, and longevity.

Chemical Processing Industries

In chemical plants, PVDF piping systems handle the transfer of aggressive chemicals like acids, oxidizers, and chlorinated solvents. Their resistance to corrosion reduces the risk of leaks and contamination, ensuring the safety of personnel and the environment. The durability of PVDF pipes minimizes maintenance requirements and downtime.

For instance, PVDF is often used in the production of chlorine and caustic soda, where materials are exposed to highly corrosive substances. The use of PVDF extends the service life of the equipment and reduces operational costs.

Water and Wastewater Treatment

PVDF pipes and fittings are employed in water treatment facilities for processes like desalination, deionization, and filtration. Their resistance to biofouling and chemical attack from disinfectants like chlorine and ozone makes them ideal for maintaining water purity. Additionally, PVDF's smooth interior surfaces reduce the accumulation of deposits, enhancing flow efficiency.

Semiconductor and Electronics Manufacturing

The semiconductor industry requires ultra-pure water and chemicals for the fabrication of electronic components. PVDF piping systems prevent contamination due to their high purity and inertness. They are used in applications such as ultrapure water systems, chemical distribution networks, and cleanroom environments.

The use of PVDF in these applications helps achieve the stringent cleanliness standards necessary for producing high-quality electronic devices. It also reduces the risk of product defects caused by impurities.

Pharmaceutical and Biotechnological Industries

In pharmaceutical manufacturing, maintaining product purity is paramount. PVDF's biocompatibility and resistance to sanitizing agents make it suitable for piping systems that handle sensitive fluids, including active pharmaceutical ingredients (APIs), solvents, and cleaning agents.

PVDF piping systems can withstand repeated sterilization processes, including steam cleaning and exposure to aggressive disinfectants, without degrading or leaching contaminants. This ensures compliance with Good Manufacturing Practices (GMP) and regulatory requirements.

Food and Beverage Industry

The food and beverage industry utilizes PVDF pipes and fittings for the transport of liquids, syrups, and cleaning solutions. PVDF's compliance with food safety standards and its resistance to cleaning chemicals make it an ideal material. Its smooth surfaces prevent bacterial growth and facilitate easy cleaning, contributing to product safety and hygiene.

Installation and Joining Techniques

The reliability of PVDF piping systems depends not only on the material properties but also on proper installation and joining methods. Techniques are chosen based on factors like system design, operating conditions, and the need for future modifications.

Heat Fusion Methods

Heat fusion is the most common method for joining PVDF pipes and fittings. There are several heat fusion techniques:

  • Butt Fusion: The pipe ends and fitting faces are heated and pressed together to form a continuous material bond. This method provides a strong, leak-free joint suitable for high-pressure applications.

  • Socket Fusion: A spigot (male end) is inserted into a heated socket (female end) of a fitting. This technique is often used for smaller diameter pipes and offers quick assembly.

  • Electrofusion: An embedded heating element within a coupling is used to fuse the pipe ends. This method is precise and allows for automation, making it suitable for installations requiring high levels of quality assurance.

Heat fusion creates joints that are as strong as the pipe itself, eliminating potential weak points in the system.

Mechanical Joining Methods

Mechanical joining methods are used when heat fusion is impractical or when disassembly might be required:

  • Flanged Connections: Flanges are bolted together with a gasket in between to ensure a tight seal. This method is suitable for connecting to equipment like pumps and valves.

  • Threaded Connections: Threads are used on pipe ends and fittings, typically sealed with PTFE tape or thread sealant. This method is more common in smaller systems or where quick assembly is needed.

  • Compression Fittings: Compression fittings use a ferrule and nut to create a seal. They are easy to install and ideal for laboratory setups or temporary installations.

While mechanical joints are convenient, they may not offer the same level of leak protection as heat-fused joints and are generally used in low-pressure applications.

Standards, Certifications, and Compliance

Compliance with international standards ensures that PVDF pipes and fittings meet the required safety and performance criteria. Some of the key standards include:

  • ASTM D3222: Specifies the standard specification for PVDF (polyvinylidene fluoride) fluroplastic materials.

  • ASTM F1673: Covers PVDF piping systems intended for industrial applications.

  • NSF/ANSI 14 and 61: Relate to plastic piping system components and their health effects, important for potable water applications.

Certifications from regulatory bodies assure users that the products are manufactured under strict quality control and are suitable for their intended applications. For instance, PVDF pipes used in pharmaceutical industries may require USP Class VI certification, indicating biocompatibility and suitability for medical applications.

Advantages of PVDF over Other Materials

PVDF offers several benefits compared to traditional piping materials like metals and other plastics:

Corrosion Resistance

Unlike metal pipes, PVDF does not corrode when exposed to chemicals or moisture. This eliminates issues like rust formation, which can contaminate fluids and weaken the piping system. The corrosion resistance reduces maintenance costs and extends the system's lifespan.

High Purity

PVDF's purity makes it suitable for applications requiring contamination-free environments. Metal ions from metal pipes can leach into fluids, affecting processes in industries like semiconductors and pharmaceuticals. PVDF eliminates this risk, ensuring product quality and process integrity.

Thermal and Mechanical Performance

Compared to other plastics, PVDF offers superior thermal stability and mechanical strength. For example, PVC (polyvinyl chloride) has lower temperature limits and may become brittle under certain conditions. PVDF maintains its performance in more extreme environments.

Ease of Installation

PVDF piping systems are generally lighter than metal systems, reducing transportation and installation challenges. The availability of various joining methods allows for flexibility in installation. Additionally, PVDF can often be installed without the need for heavy equipment or specialized tools.

Cost-Effectiveness

While the initial cost of PVDF pipes and fittings may be higher than some alternatives, the long-term savings from reduced maintenance, longer lifespan, and minimized downtime make it a cost-effective solution. The total cost of ownership is often lower when considering these factors.

Maintenance, Troubleshooting, and Longevity

Regular maintenance ensures the longevity and reliability of PVDF piping systems. Proper procedures involve routine inspections, cleaning, and prompt repair of any issues.

Routine Inspections

Inspections should check for signs of wear, such as discoloration, cracks, or deformation. Monitoring pressure and flow rates can help detect leaks or blockages. Early detection of issues prevents minor problems from escalating into major failures.

Cleaning Procedures

Depending on the application, PVDF pipes may require periodic cleaning to remove deposits or biofilms. Cleaning agents should be compatible with PVDF to avoid degradation. The smooth interior surface of PVDF pipes facilitates cleaning and reduces the risk of microbial growth.

Repair and Replacement

In case of damage, PVDF piping systems can be repaired using appropriate methods. Small leaks may be fixed with mechanical clamps or couplings. For more significant damage, section replacement using heat fusion ensures a reliable repair. The availability of PVDF Pipe Fittings in various configurations aids in efficient repairs.

Environmental and Safety Considerations

PVDF contributes positively to environmental and safety objectives within industrial settings.

Recyclability

PVDF is a recyclable material, and recycling programs are increasingly available. Recycling reduces waste and conserves resources, aligning with sustainability goals. However, recycling must be managed properly due to the potential contamination from chemicals conveyed in the piping systems.

Low Emissions

PVDF does not emit volatile organic compounds (VOCs) during use, contributing to a safer working environment. In the event of a fire, PVDF exhibits low smoke generation and toxicity, enhancing safety for personnel.

Chemical Safety

By resisting chemical degradation, PVDF prevents leaks that could lead to environmental contamination or hazardous exposure. This property supports compliance with environmental regulations and protects workers and surrounding communities.

Case Studies and Industry Examples

Real-world examples illustrate the benefits of PVDF pipes and fittings in various applications.

Chemical Plant Efficiency Improvement

A chemical manufacturing facility faced frequent maintenance issues due to corrosion in their metal piping system handling sulfuric acid. By switching to PVDF pipes and fittings, the plant significantly reduced maintenance downtime, extended the lifespan of the piping system, and improved overall efficiency.

Semiconductor Facility Yield Enhancement

A semiconductor fabrication plant replaced its existing piping with PVDF to eliminate contamination sources. The ultra-pure PVDF system resulted in a measurable increase in product yield and quality, justifying the investment through improved profitability and customer satisfaction.

Water Treatment Plant Longevity

A municipal water treatment facility implemented PVDF piping in its chlorination process lines. The material's resistance to chlorine prevented the degradation experienced with previous materials, leading to a longer service life and reduced operational costs.

Future Trends and Developments

Advancements in material science and manufacturing are expected to enhance the performance and applications of PVDF pipes and fittings.

Enhanced Materials

Research into PVDF copolymers and composites aims to improve properties like impact resistance, flexibility, and thermal conductivity. These enhancements could open up new applications or improve performance in existing ones.

Additive Manufacturing

The adoption of 3D printing technologies using PVDF could allow for the production of complex, customized fittings and components. This flexibility would benefit industries requiring specialized solutions or rapid prototyping.

Sustainability Initiatives

Manufacturers are focusing on reducing the environmental impact of PVDF production through energy-efficient processes and the use of renewable energy sources. Additionally, efforts to enhance the recyclability of PVDF products contribute to a circular economy.

Conclusion

PVDF pipes and fittings represent a vital component in industries requiring reliable, high-performance piping solutions. Their exceptional chemical resistance, thermal stability, and mechanical strength make them suitable for demanding applications across various sectors.

By understanding the properties and advantages of PVDF materials, industry professionals can make informed decisions when designing and implementing piping systems. The use of PVDF Pipe Fittings ensures system integrity, safety, and compliance with regulatory standards.

As industries evolve and new challenges arise, PVDF will continue to play a crucial role in providing solutions that meet the highest demands for performance and reliability. Its versatility and proven track record make it a material of choice for the present and future needs of advanced piping systems.
